BTW69-200RG
STMicroelectronics

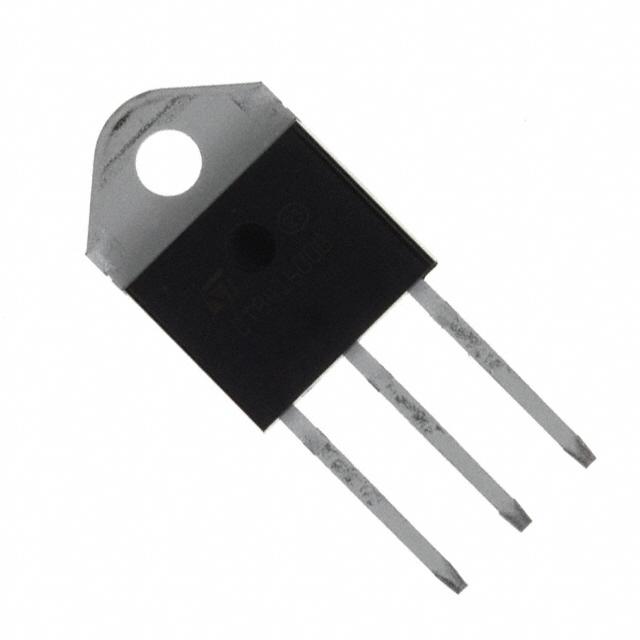

Images are for reference only.
See Product Specifications for product details.
Buy BTW69-200RG with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BTW69-200RG with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BTW69-200RG Datasheet| Part Number | BTW69-200RG |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | SCR 50A 200V TOP3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 30pcs | 120pcs | 510pcs | 1020pcs | |
|---|---|---|---|---|---|---|
| $2.233 | $1.923 | $1.669 | $1.454 | $1.266 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BTW69-200RG |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Thyristors - SCRs |
| Description | SCR 50A 200V TOP3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30642 pcs |
| Datasheet | BTW69-200RG.pdf |
| Voltage - On State (Vtm) (Max) | 1.9V |
| Voltage - Off State | 200V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
| Supplier Device Package | TOP3 |
| Series | - |
| SCR Type | Standard Recovery |
| Packaging | Tube |
| Package / Case | TOP-3 |
| Other Names | 497-4186-5 BTW69200RG |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | SCR 200V 50A Standard Recovery Through Hole TOP3 |
| Current - On State (It (RMS)) (Max) | 50A |
| Current - On State (It (AV)) (Max) | 32A |
| Current - Off State (Max) | 10µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 580A, 610A |
| Current - Hold (Ih) (Max) | 150mA |
| Current - Gate Trigger (Igt) (Max) | 80mA |
| Base Part Number | BTW69 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 30642 pcs of STMicroelectronicsBTW69-200RG in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
