STW22N95K5
STMicroelectronics

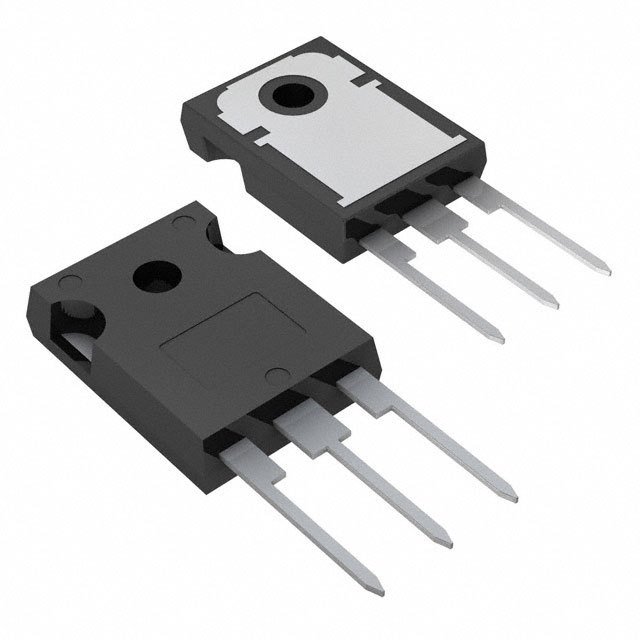

Images are for reference only.
See Product Specifications for product details.
Buy STW22N95K5 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STW22N95K5 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STW22N95K5 Datasheet| Part Number | STW22N95K5 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 950V 17.5A TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 30pcs | 120pcs | 510pcs | 1020pcs | |
|---|---|---|---|---|---|---|
| $2.917 | $2.392 | $2.158 | $1.808 | $1.575 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | STW22N95K5 |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 950V 17.5A TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19071 pcs |
| Datasheet | STW22N95K5.pdf |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-247 |
| Series | Automotive, AEC-Q101, SuperMESH5™ |
| Rds On (Max) @ Id, Vgs | 330 mOhm @ 9A, 10V |
| Power Dissipation (Max) | 250W (Tc) |
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Other Names | 497-14580-5 STW22N95K5-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1550pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 48nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 950V |
| Detailed Description | N-Channel 950V 17.5A (Tc) 250W (Tc) Through Hole TO-247 |
| Current - Continuous Drain (Id) @ 25°C | 17.5A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 19071 pcs of STMicroelectronicsSTW22N95K5 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
