VIPER53SPTR-E
STMicroelectronics

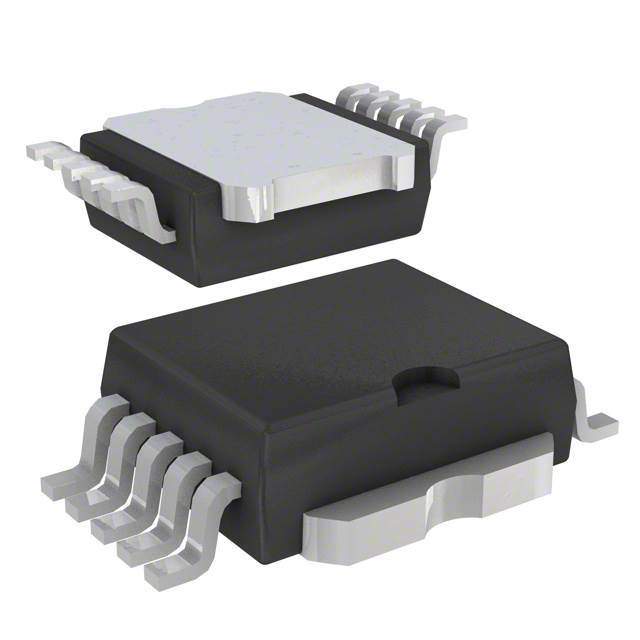

Images are for reference only.
See Product Specifications for product details.
Buy VIPER53SPTR-E with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy VIPER53SPTR-E with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload VIPER53SPTR-E Datasheet| Part Number | VIPER53SPTR-E |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC OFFLINE SWIT PWM CM POWERSO10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
600pcs | 1200pcs | 3000pcs | 6000pcs | ||
|---|---|---|---|---|---|---|
| $0.641 | $0.541 | $0.514 | $0.494 | |||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | VIPER53SPTR-E |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC OFFLINE SWIT PWM CM POWERSO10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79493 pcs |
| Datasheet | VIPER53SPTR-E.pdf |
| Voltage - Supply (Vcc/Vdd) | 8.4 V ~ 19 V |
| Voltage - Start Up | 11.5V |
| Voltage - Breakdown | 620V |
| Topology | Flyback |
| Supplier Device Package | 10-PowerSO |
| Series | VIPER™ |
| Power (Watts) | 65W |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Output Isolation | Isolated |
| Other Names | 497-6173-2 VIPER53SPTRE |
| Operating Temperature | -40°C ~ 150°C (TC) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes |
| Frequency - Switching | Up to 300kHz |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Short Circuit |
| Duty Cycle | - |
| Detailed Description | Converter Offline Flyback Topology Up to 300kHz 10-PowerSO |
| Control Features | EN, Frequency Control, Soft Start |
| Base Part Number | VIPER53 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 79493 pcs of STMicroelectronicsVIPER53SPTR-E in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
