BAW 56 B5003
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy BAW 56 B5003 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BAW 56 B5003 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BAW 56 B5003 Datasheet| Part Number | BAW 56 B5003 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | DIODE ARRAY GP 80V 200MA SOT23 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | |||||
|---|---|---|---|---|---|---|
| $0.062 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BAW 56 B5003 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Diodes - Rectifiers - Arrays |
| Description | DIODE ARRAY GP 80V 200MA SOT23 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 356370 pcs |
| Datasheet | BAW 56 B5003.pdf |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA |
| Voltage - DC Reverse (Vr) (Max) | 80V |
| Supplier Device Package | SOT-23-3 |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | - |
| Reverse Recovery Time (trr) | 4ns |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Other Names | BAW56B5003 BAW56B5003INCT |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Standard |

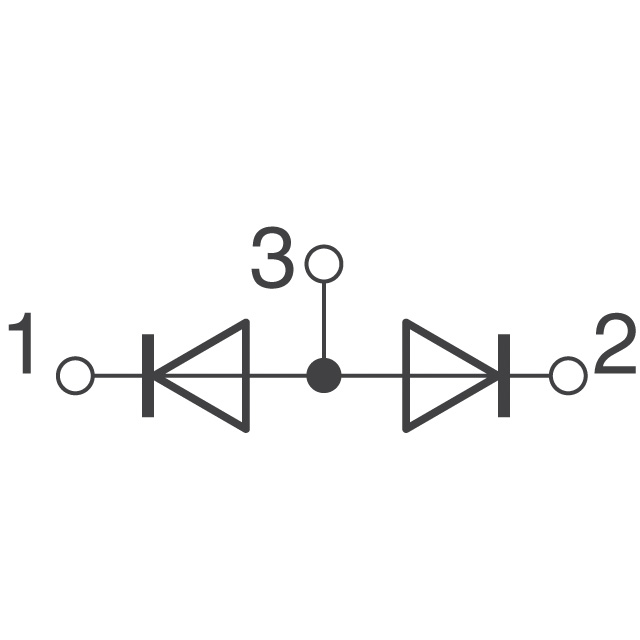

| Diode Configuration | 1 Pair Common Anode |
| Detailed Description | Diode Array 1 Pair Common Anode Standard 80V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Current - Reverse Leakage @ Vr | 150nA @ 70V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Base Part Number | BAW56 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 356370 pcs of International Rectifier (Infineon Technologies)BAW 56 B5003 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
