IGZ100N65H5XKSA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

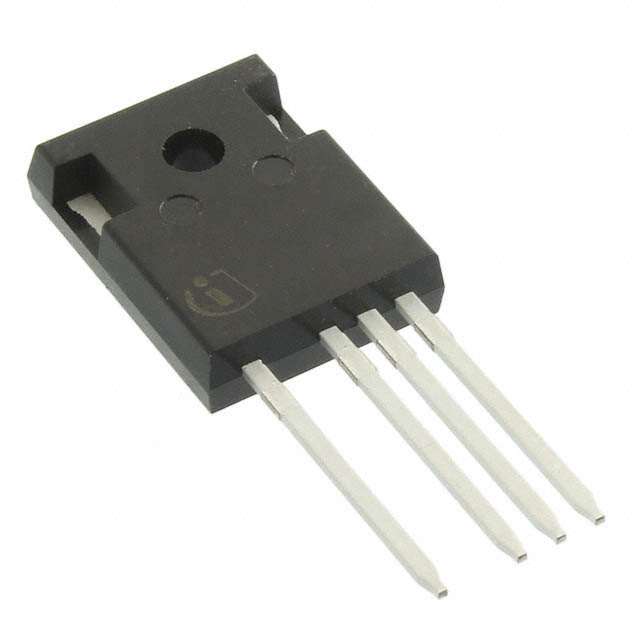

Images are for reference only.
See Product Specifications for product details.
Buy IGZ100N65H5XKSA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IGZ100N65H5XKSA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IGZ100N65H5XKSA1 Datasheet| Part Number | IGZ100N65H5XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 650V 100A SGL TO-247-4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 240pcs | 720pcs | ||
|---|---|---|---|---|---|---|
| $3.054 | $2.759 | $2.284 | $1.989 | |||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IGZ100N65H5XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 650V 100A SGL TO-247-4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17222 pcs |
| Datasheet | IGZ100N65H5XKSA1.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 100A |
| Test Condition | 400V, 50A, 8 Ohm, 15V |
| Td (on/off) @ 25°C | 30ns/421ns |
| Switching Energy | 850µJ (on), 770µJ (off) |
| Supplier Device Package | PG-TO247-4 |
| Series | TrenchStop™ 5 |
| Power - Max | 536W |
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Other Names | IGZ100N65H5 SP001160058 |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Trench |
| Gate Charge | 210nC |
| Detailed Description | IGBT Trench 650V 161A 536W Through Hole PG-TO247-4 |
| Current - Collector Pulsed (Icm) | 400A |
| Current - Collector (Ic) (Max) | 161A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 17222 pcs of International Rectifier (Infineon Technologies)IGZ100N65H5XKSA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
