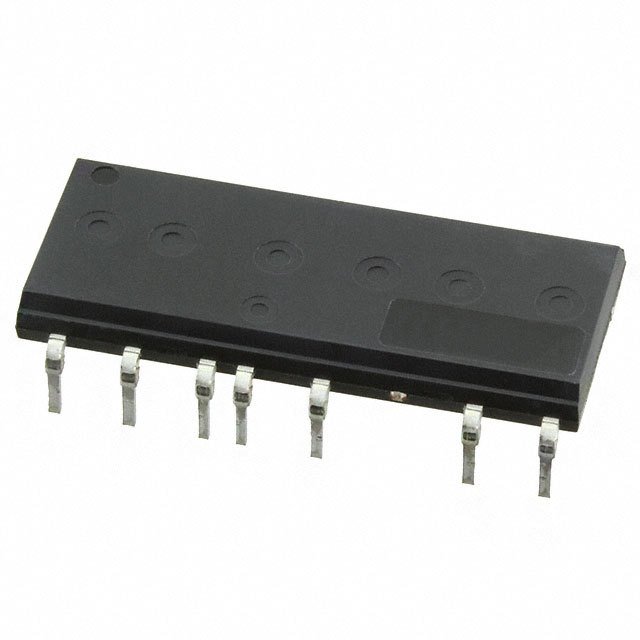

IRSM515-055DA
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy IRSM515-055DA with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRSM515-055DA with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRSM515-055DA Datasheet| Part Number | IRSM515-055DA |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC MOTOR DRIVER 500V 23DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | ||||
|---|---|---|---|---|---|---|
| $3.55 | $3.207 | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRSM515-055DA |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC MOTOR DRIVER 500V 23DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10932 pcs |
| Datasheet | IRSM515-055DA.pdf |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 400V (Max) |
| Technology | UMOS |
| Supplier Device Package | 23-DIP |
| Series | µIPM™-DIP |
| Rds On (Typ) | 1.3 Ohm |
| Packaging | Tube |
| Package / Case | 23-DIP Module |
| Output Configuration | Half Bridge (3) |
| Other Names | SP001539624 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Detailed Description | Half Bridge (3) Driver AC Motors UMOS 23-DIP |
| Current - Peak Output | 15A |
| Current - Output / Channel | 2.4A |
| Applications | AC Motors |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 10932 pcs of International Rectifier (Infineon Technologies)IRSM515-055DA in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
