IRG7PSH73K10PBF
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

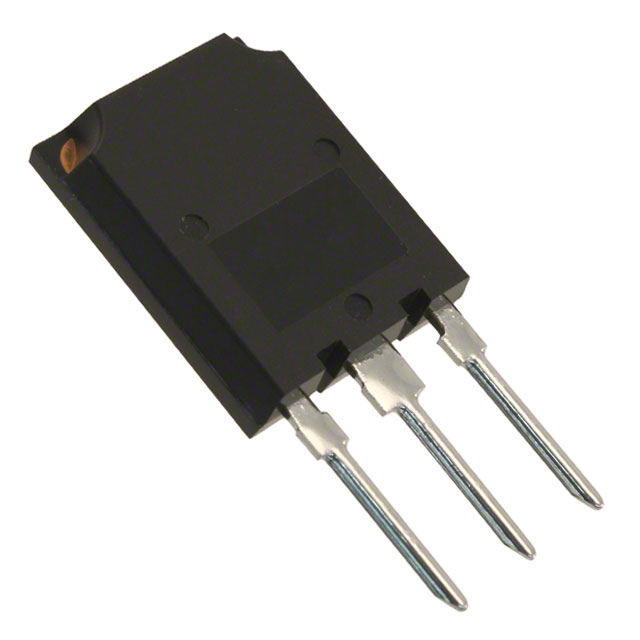

Images are for reference only.
See Product Specifications for product details.
Buy IRG7PSH73K10PBF with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRG7PSH73K10PBF with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRG7PSH73K10PBF Datasheet| Part Number | IRG7PSH73K10PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 1200V 220A 1150W SUPER247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRG7PSH73K10PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 1200V 220A 1150W SUPER247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5288 pcs |
| Datasheet | IRG7PSH73K10PBF.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 75A |
| Test Condition | 600V, 75A, 4.7 Ohm, 15V |
| Td (on/off) @ 25°C | 63ns/267ns |
| Switching Energy | 7.7mJ (on), 4.6mJ (off) |
| Supplier Device Package | SUPER-247 (TO-274AA) |
| Series | - |
| Power - Max | 1150W |
| Packaging | Tube |
| Package / Case | TO-274AA |
| Other Names | SP001549408 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Trench |
| Gate Charge | 360nC |
| Detailed Description | IGBT Trench 1200V 220A 1150W Through Hole SUPER-247 (TO-274AA) |
| Current - Collector Pulsed (Icm) | 225A |
| Current - Collector (Ic) (Max) | 220A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 5288 pcs of International Rectifier (Infineon Technologies)IRG7PSH73K10PBF in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
