TDA21201-B7
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

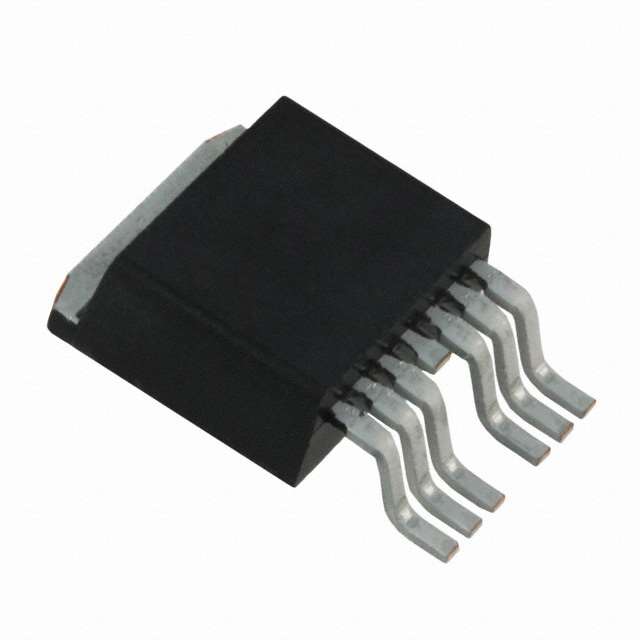

Images are for reference only.
See Product Specifications for product details.
Buy TDA21201-B7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy TDA21201-B7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload TDA21201-B7 Datasheet| Part Number | TDA21201-B7 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | SWITCH MOSFET/DRIVER TO263-7-2 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | TDA21201-B7 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | SWITCH MOSFET/DRIVER TO263-7-2 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5134 pcs |
| Datasheet | TDA21201-B7.pdf |
| Voltage - Supply | 9 V ~ 15 V |
| Voltage - Load | 9 V ~ 15 V |
| Technology | Power MOSFET |
| Supplier Device Package | P-TO263-7-2 |
| Series | - |
| Rds On (Typ) | 4.8 mOhm LS, 13.3 mOhm HS |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
| Output Configuration | Half Bridge |
| Other Names | TDA21201-B7INTR |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Interface | PWM |
| Features | Bootstrap Circuit |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Detailed Description | Half Bridge Driver Synchronous Buck Converters Power MOSFET P-TO263-7-2 |
| Current - Peak Output | - |
| Current - Output / Channel | 30A |
| Base Part Number | TDA21201 |
| Applications | Synchronous Buck Converters |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 5134 pcs of International Rectifier (Infineon Technologies)TDA21201-B7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
