IRSM005-800MH
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}

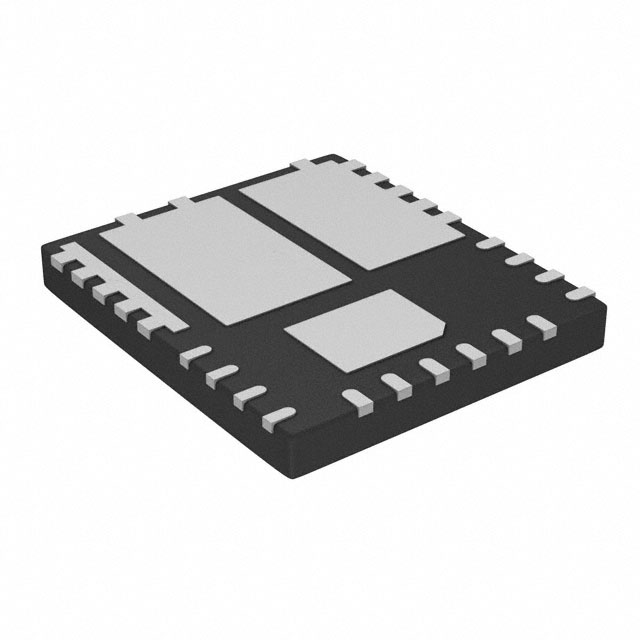

Images are for reference only.
See Product Specifications for product details.
Buy IRSM005-800MH with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy IRSM005-800MH with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload IRSM005-800MH Datasheet| Part Number | IRSM005-800MH |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC GATE DRIVER 40V QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $1.211 | $1.087 | $0.891 | $0.758 | $0.64 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | IRSM005-800MH |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC GATE DRIVER 40V QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51785 pcs |
| Datasheet | IRSM005-800MH.pdf |
| Voltage - Supply | 10 V ~ 20 V |
| Voltage - Load | 40V (Max) |
| Technology | Power MOSFET |
| Supplier Device Package | 27-PQFN (7x8) |
| Series | µIPM™ |
| Rds On (Typ) | 2.7 mOhm |
| Packaging | Tray |
| Package / Case | 27-PowerVQFN |
| Output Configuration | Half Bridge |
| Other Names | SP001549876 |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Load Type | Inductive, Capacitive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Detailed Description | Half Bridge Driver AC Motors, DC Motors, DC-DC Converters, General Purpose Power MOSFET 27-PQFN (7x8) |
| Current - Peak Output | - |
| Current - Output / Channel | 80A |
| Applications | AC Motors, DC Motors, DC-DC Converters, General Purpose |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 51785 pcs of International Rectifier (Infineon Technologies)IRSM005-800MH in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
