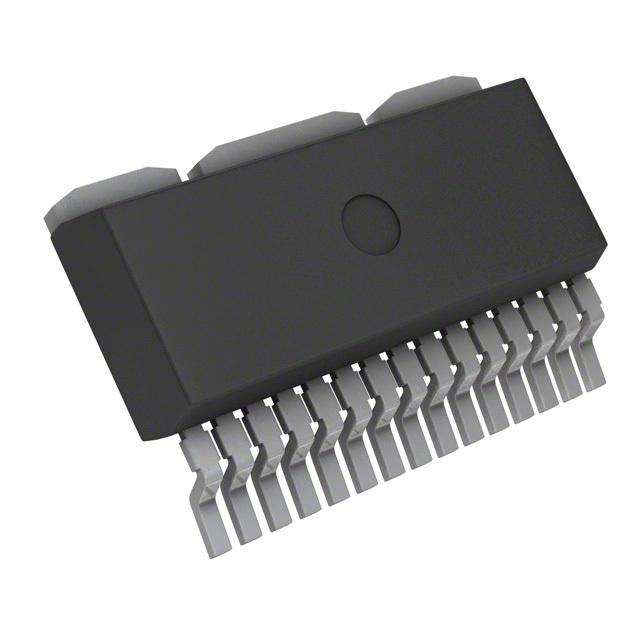

BTM7710GPAUMA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy BTM7710GPAUMA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BTM7710GPAUMA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BTM7710GPAUMA1 Datasheet| Part Number | BTM7710GPAUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC BRIDGE DRIVER PAR TO263-15 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
500pcs | 1000pcs | ||||
|---|---|---|---|---|---|---|
| $2.007 | $1.748 | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BTM7710GPAUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | PMIC - Full, Half-Bridge Drivers |
| Description | IC BRIDGE DRIVER PAR TO263-15 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20079 pcs |
| Datasheet | BTM7710GPAUMA1.pdf |
| Voltage - Supply | 1.8 V ~ 42 V |
| Voltage - Load | 1.8 V ~ 42 V |
| Technology | DMOS |
| Supplier Device Package | P-TO263-15-1 |
| Series | TrilithIC™ |
| Rds On (Typ) | 40 mOhm LS, 70 mOhm HS |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-18 (15 Leads + 3 Tabs) |
| Output Configuration | Half Bridge (2) |
| Other Names | BTM7710GP BTM7710GP-ND BTM7710GPAUMA1TR BTM7710GPTR BTM7710GPTR-ND SP000303743 |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic |
| Features | Status Flag |
| Fault Protection | Over Temperature, Short Circuit, UVLO |
| Detailed Description | Half Bridge (2) Driver DC Motors, General Purpose DMOS P-TO263-15-1 |
| Current - Peak Output | 15A |
| Current - Output / Channel | - |
| Base Part Number | BTM7710 |
| Applications | DC Motors, General Purpose |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 20079 pcs of International Rectifier (Infineon Technologies)BTM7710GPAUMA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
