FDB9409-F085
AMI Semiconductor / ON Semiconductor

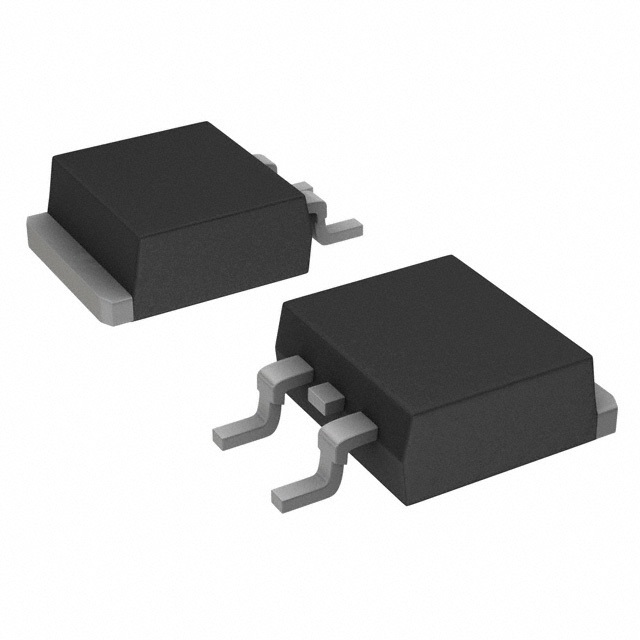

Images are for reference only.
See Product Specifications for product details.
Buy FDB9409-F085 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDB9409-F085 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDB9409-F085 Datasheet| Part Number | FDB9409-F085 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 40V 80A TO-263 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | |||
|---|---|---|---|---|---|---|
| $0.762 | $0.689 | $0.553 | ||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FDB9409-F085 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 40V 80A TO-263 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53859 pcs |
| Datasheet | FDB9409-F085.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | D²PAK (TO-263) |
| Series | Automotive, AEC-Q101, PowerTrench® |
| Rds On (Max) @ Id, Vgs | 3.5 mOhm @ 80A, 10V |
| Power Dissipation (Max) | 94W (Tj) |
| Packaging | Original-Reel® |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Other Names | FDB9409-F085DKR FDB9409_F085DKR FDB9409_F085DKR-ND |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2980pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 56nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 80A (Tc) 94W (Tj) Surface Mount D²PAK (TO-263) |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 53859 pcs of AMI Semiconductor / ON SemiconductorFDB9409-F085 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
