NCP1070P065G
AMI Semiconductor / ON Semiconductor

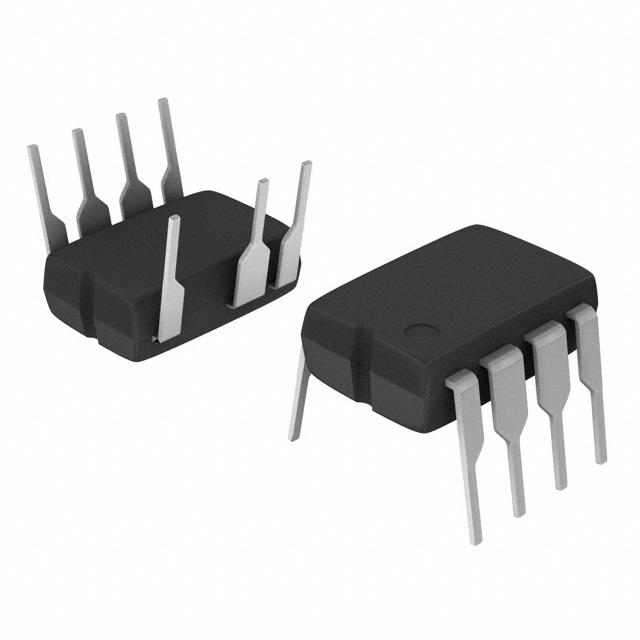

Images are for reference only.
See Product Specifications for product details.
Buy NCP1070P065G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NCP1070P065G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NCP1070P065G Datasheet| Part Number | NCP1070P065G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG SWITCHING HV SMPS 7DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 50pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $0.402 | $0.341 | $0.281 | $0.232 | $0.183 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | NCP1070P065G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - AC DC Converters, Offline Switchers |
| Description | IC REG SWITCHING HV SMPS 7DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123781 pcs |
| Datasheet | NCP1070P065G.pdf |
| Voltage - Supply (Vcc/Vdd) | 6.3 V ~ 10 V |
| Voltage - Start Up | 8.2V |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Supplier Device Package | 8-PDIP |
| Series | - |
| Power (Watts) | 14W |
| Packaging | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Output Isolation | Isolated |
| Other Names | NCP1070P065GOS |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes |
| Frequency - Switching | 65kHz |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Duty Cycle | 68% |
| Detailed Description | Converter Offline Flyback Topology 65kHz 8-PDIP |
| Control Features | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 123781 pcs of AMI Semiconductor / ON SemiconductorNCP1070P065G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
