FGAF20N60SMD
AMI Semiconductor / ON Semiconductor

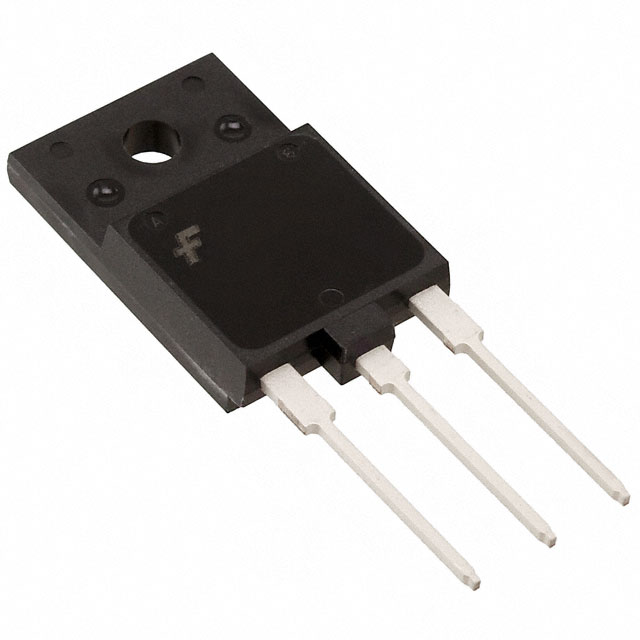

Images are for reference only.
See Product Specifications for product details.
Buy FGAF20N60SMD with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FGAF20N60SMD with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FGAF20N60SMD Datasheet| Part Number | FGAF20N60SMD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 600V 40A 62.5W TO-3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 360pcs | 720pcs | 1080pcs | |
|---|---|---|---|---|---|---|
| $1.405 | $1.26 | $0.979 | $0.879 | $0.741 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FGAF20N60SMD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 600V 40A 62.5W TO-3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49460 pcs |
| Datasheet | FGAF20N60SMD.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 20A |
| Test Condition | 400V, 20A, 10 Ohm, 15V |
| Td (on/off) @ 25°C | 12ns/91ns |
| Switching Energy | 452µJ (on), 141µJ (off) |
| Supplier Device Package | TO-3PF |
| Series | - |
| Reverse Recovery Time (trr) | 26.7ns |
| Power - Max | 75W |
| Packaging | Tube |
| Package / Case | SC-94 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Field Stop |
| Gate Charge | 64nC |
| Detailed Description | IGBT Field Stop 600V 40A 75W Through Hole TO-3PF |
| Current - Collector Pulsed (Icm) | 60A |
| Current - Collector (Ic) (Max) | 40A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 49460 pcs of AMI Semiconductor / ON SemiconductorFGAF20N60SMD in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
