FQD5N60CTM-WS
AMI Semiconductor / ON Semiconductor

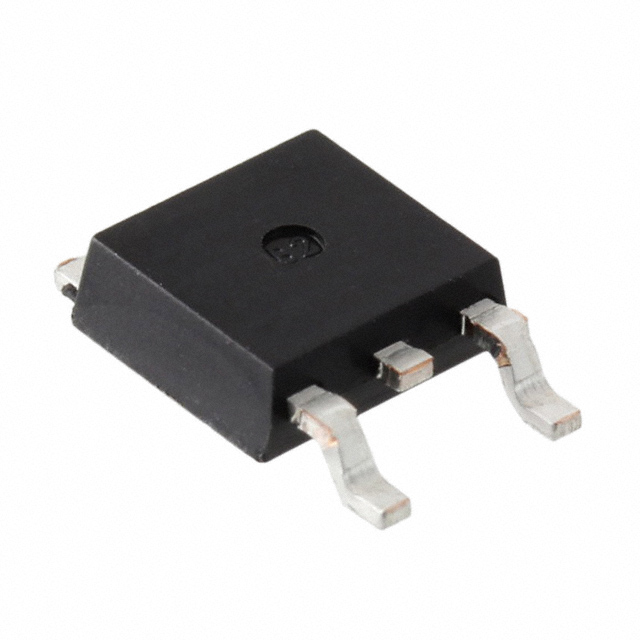

Images are for reference only.
See Product Specifications for product details.
Buy FQD5N60CTM-WS with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FQD5N60CTM-WS with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FQD5N60CTM-WS Datasheet| Part Number | FQD5N60CTM-WS |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 600V 2.8A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $0.45 | $0.398 | $0.314 | $0.244 | $0.192 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FQD5N60CTM-WS |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 600V 2.8A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97286 pcs |
| Datasheet | FQD5N60CTM-WS.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | D-Pak |
| Series | QFET® |
| Rds On (Max) @ Id, Vgs | 2.5 Ohm @ 1.4A, 10V |
| Power Dissipation (Max) | 2.5W (Ta), 49W (Tc) |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Other Names | FQD5N60CTM-WSCT FQD5N60CTM_WSCT FQD5N60CTM_WSCT-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 670pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 19nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 2.8A (Tc) 2.5W (Ta), 49W (Tc) Surface Mount D-Pak |
| Current - Continuous Drain (Id) @ 25°C | 2.8A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 97286 pcs of AMI Semiconductor / ON SemiconductorFQD5N60CTM-WS in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
