MJ11022G
AMI Semiconductor / ON Semiconductor

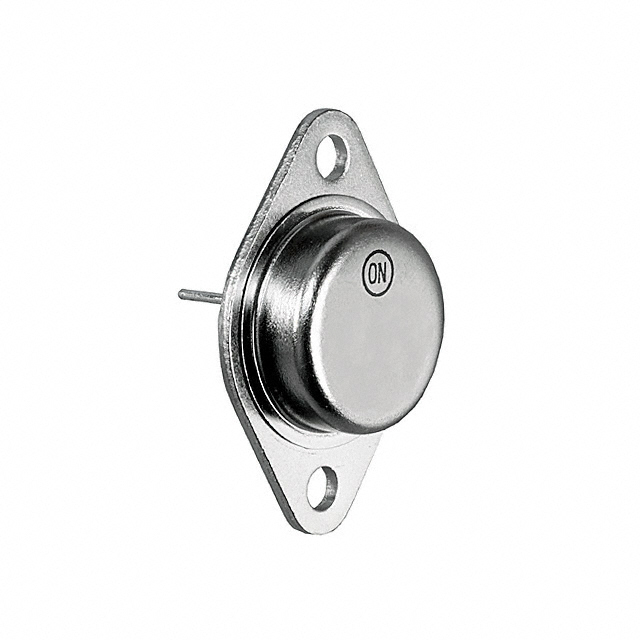

Images are for reference only.
See Product Specifications for product details.
Buy MJ11022G with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy MJ11022G with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload MJ11022G Datasheet| Part Number | MJ11022G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN DARL 250V 15A TO-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $2.469 | $2.23 | $1.847 | $1.608 | $1.40 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | MJ11022G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - Bipolar (BJT) - Single |
| Description | TRANS NPN DARL 250V 15A TO-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22496 pcs |
| Datasheet | MJ11022G.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 250V |
| Vce Saturation (Max) @ Ib, Ic | 3.4V @ 150mA, 15A |
| Transistor Type | NPN - Darlington |
| Supplier Device Package | TO-204 (TO-3) |
| Series | - |
| Power - Max | 175W |
| Packaging | Tray |
| Package / Case | TO-204AA, TO-3 |
| Other Names | MJ11022G-ND MJ11022GOS |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor NPN - Darlington 250V 15A 175W Through Hole TO-204 (TO-3) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 10A, 5V |
| Current - Collector Cutoff (Max) | 1mA |
| Current - Collector (Ic) (Max) | 15A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 22496 pcs of AMI Semiconductor / ON SemiconductorMJ11022G in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
