FDMC2514SDC
AMI Semiconductor / ON Semiconductor

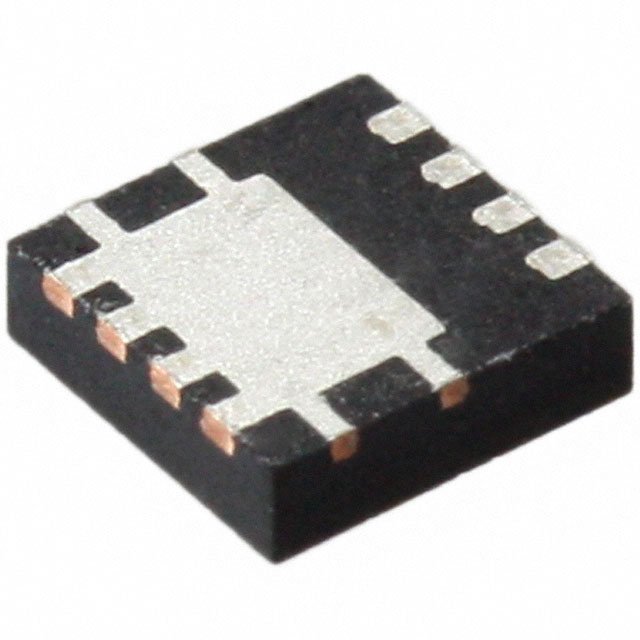

Images are for reference only.
See Product Specifications for product details.
Buy FDMC2514SDC with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC2514SDC with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDMC2514SDC Datasheet| Part Number | FDMC2514SDC |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 25V 40A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $1.073 | $0.968 | $0.778 | $0.605 | $0.501 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FDMC2514SDC |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 25V 40A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73281 pcs |
| Datasheet | FDMC2514SDC.pdf |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | Dual Cool ™ 33 |
| Series | Dual Cool™, PowerTrench®, SyncFET™ |
| Rds On (Max) @ Id, Vgs | 3.5 mOhm @ 22.5A, 10V |
| Power Dissipation (Max) | 3W (Ta), 60W (Tc) |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerTDFN |
| Other Names | FDMC2514SDCCT |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2705pF @ 13V |
| Gate Charge (Qg) (Max) @ Vgs | 44nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 25V |
| Detailed Description | N-Channel 25V 24A (Ta), 40A (Tc) 3W (Ta), 60W (Tc) Surface Mount Dual Cool ™ 33 |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 40A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 73281 pcs of AMI Semiconductor / ON SemiconductorFDMC2514SDC in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
