H11AV1M
AMI Semiconductor / ON Semiconductor

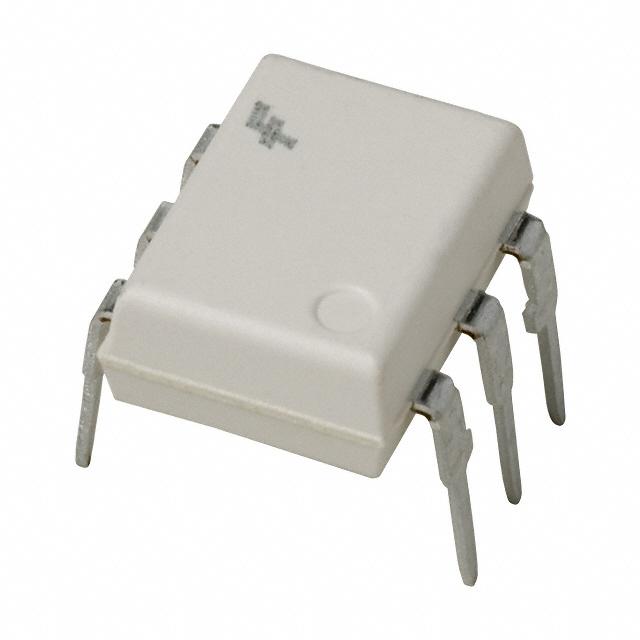

Images are for reference only.
See Product Specifications for product details.
Buy H11AV1M with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy H11AV1M with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload H11AV1M Datasheet| Part Number | H11AV1M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $0.359 | $0.278 | $0.199 | $0.151 | $0.119 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | H11AV1M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Optoisolators - Transistor, Photovoltaic Output |
| Description | OPTOISO 4.17KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 201539 pcs |
| Datasheet | H11AV1M.pdf |
| Voltage - Output (Max) | 70V |
| Voltage - Isolation | 4170Vrms |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Vce Saturation (Max) | 400mV |
| Turn On / Turn Off Time (Typ) | 15µs, 15µs (Max) |
| Supplier Device Package | 6-DIP |
| Series | - |
| Rise / Fall Time (Typ) | - |
| Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Output Type | Transistor with Base |
| Other Names | H11AV1-M |
| Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-DIP |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 300% @ 10mA |
| Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 60mA |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 201539 pcs of AMI Semiconductor / ON SemiconductorH11AV1M in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
