FOD8384R2
AMI Semiconductor / ON Semiconductor

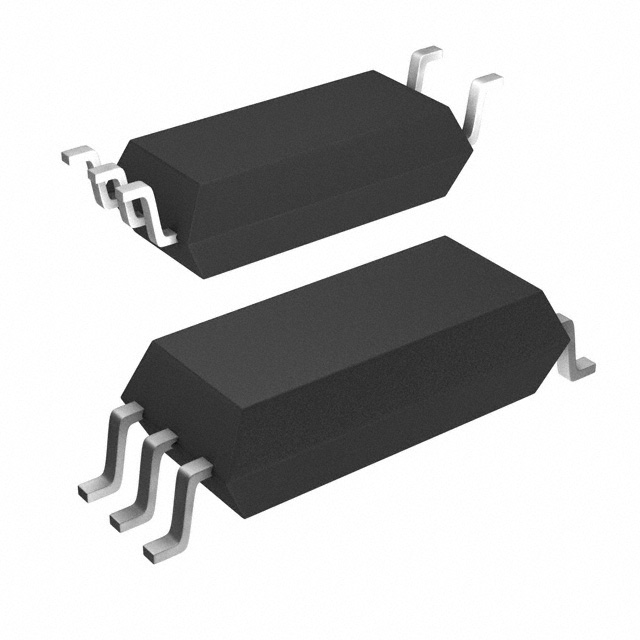

Images are for reference only.
See Product Specifications for product details.
Buy FOD8384R2 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FOD8384R2 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FOD8384R2 Datasheet| Part Number | FOD8384R2 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 5KV 1CH GATE DRIVER 5SOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1000pcs | |||||
|---|---|---|---|---|---|---|
| $0.415 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FOD8384R2 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Isolators - Gate Drivers |
| Description | OPTOISO 5KV 1CH GATE DRIVER 5SOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77901 pcs |
| Datasheet | FOD8384R2.pdf |
| Voltage - Supply | 15 V ~ 30 V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.43V |
| Technology | Optical Coupling |
| Supplier Device Package | 5-SOP |
| Series | - |
| Rise / Fall Time (Typ) | 35ns, 25ns |
| Pulse Width Distortion (Max) | 65ns |
| Propagation Delay tpLH / tpHL (Max) | 210ns, 210ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SOIC (0.346", 8.80mm Width), 5 Leads |
| Other Names | FOD8384R2TR |
| Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 3A Gate Driver Optical Coupling 5000Vrms 1 Channel 5-SOP |
| Current - Peak Output | 3A |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - DC Forward (If) (Max) | 25mA |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Approvals | UL |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 77901 pcs of AMI Semiconductor / ON SemiconductorFOD8384R2 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
