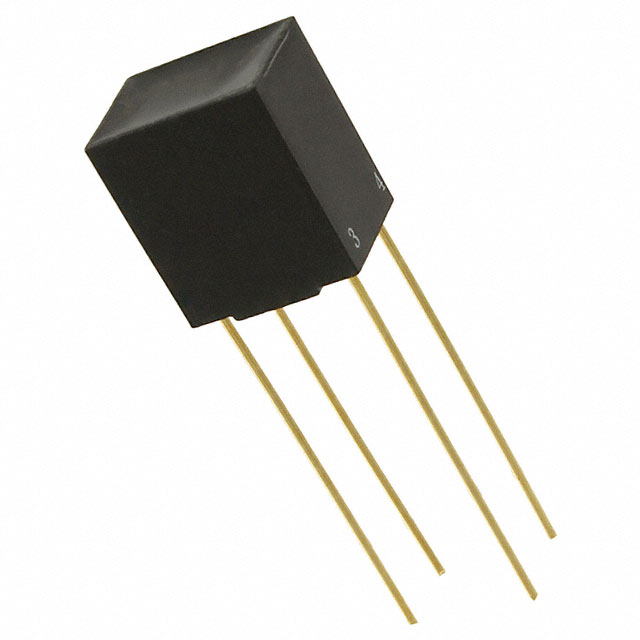

MET-50-T
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy MET-50-T with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy MET-50-T with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload MET-50-T Datasheet| Part Number | MET-50-T |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSFORMER 10K:125 0.0MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | MET-50-T |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Audio Transformers |
| Description | TRANSFORMER 10K:125 0.0MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9272 pcs |
| Datasheet | MET-50-T.pdf |
| Weight | - |
| Voltage - Isolation | 1000VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary | 8.62:1 |
| Transformer Type | Audio Coupling |
| Termination Style | PC Pin |
| Size / Dimension | 0.409" L x 0.310" W (10.40mm x 7.87mm) |
| Series | MET |
| Return Loss | - |
| Power Level | 10mW |
| Packaging | Bulk |
| Other Names | 237-1465 MET-50-T-B MET-50-T-B-ND MET50T |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - |
| Impedance - Secondary (Ohms) | 125 |
| Impedance - Primary (Ohms) | 10k |
| Height - Seated (Max) | 0.465" (11.80mm) |
| Frequency Response | ±2dB |
| Frequency Range | 300Hz ~ 100kHz |
| DC Resistance (DCR) - Secondary | 28 Ohm |
| DC Resistance (DCR) - Primary | 1.1 kOhm |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 9272 pcs of Triad MagneticsMET-50-T in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
