CMF16-104450-B
Triad Magnetics

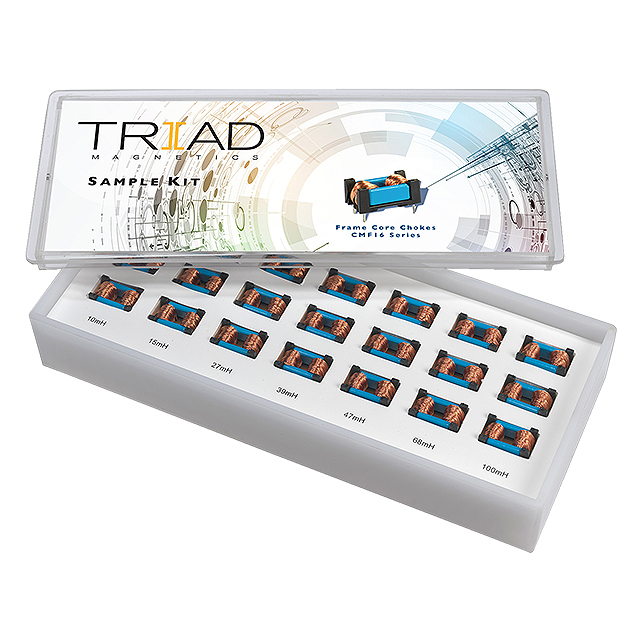

Images are for reference only.
See Product Specifications for product details.
Buy CMF16-104450-B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CMF16-104450-B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CMF16-104450-B Datasheet| Part Number | CMF16-104450-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CMC 100MH 450MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | CMF16-104450-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Common Mode Chokes |
| Description | CMC 100MH 450MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98720 pcs |
| Datasheet | CMF16-104450-B.pdf |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 300V |
| Size / Dimension | 0.965" L x 0.571" W (24.50mm x 14.50mm) |
| Series | CMF |
| Ratings | - |
| Packaging | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Other Names | 237-2271 |
| Operating Temperature | -40°C ~ 105°C |
| Number of Lines | 2 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 100mH @ 10kHz |
| Height (Max) | 0.531" (13.50mm) |
| Filter Type | Power Line |
| Features | - |
| Detailed Description | 100mH @ 10kHz 2 Line Common Mode Choke Through Hole 450mA DCR 3.22 Ohm |
| DC Resistance (DCR) (Max) | 3.22 Ohm |
| Current Rating (Max) | 450mA |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 98720 pcs of Triad MagneticsCMF16-104450-B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
