UT2020-005
Triad Magnetics

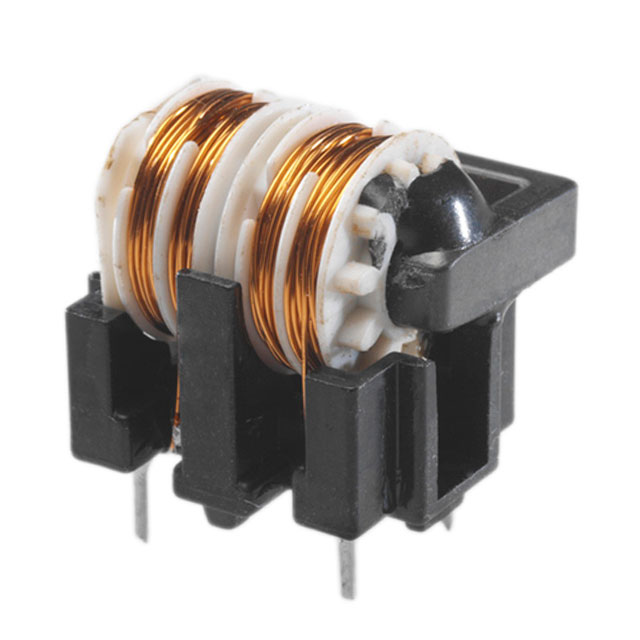

Images are for reference only.
See Product Specifications for product details.
Buy UT2020-005 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy UT2020-005 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload UT2020-005 Datasheet| Part Number | UT2020-005 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | COMMON MODE CHOKE 1A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | UT2020-005 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Common Mode Chokes |
| Description | COMMON MODE CHOKE 1A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25952 pcs |
| Datasheet | UT2020-005.pdf |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Size / Dimension | 0.905" L x 0.965" W (22.99mm x 24.51mm) |
| Series | UT |
| Ratings | - |
| Package / Case | Horizontal, 4 PC Pin |
| Operating Temperature | -20°C ~ 105°C |
| Number of Lines | 2 |
| Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.787" (20.00mm) |
| Filter Type | Power Line |
| Features | - |
| Detailed Description | 2 Line Common Mode Choke Through Hole 1A DCR 130 mOhm |
| DC Resistance (DCR) (Max) | 130 mOhm |
| Current Rating (Max) | 1A |
| Approvals | CSA, IEC, UL |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 25952 pcs of Triad MagneticsUT2020-005 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
