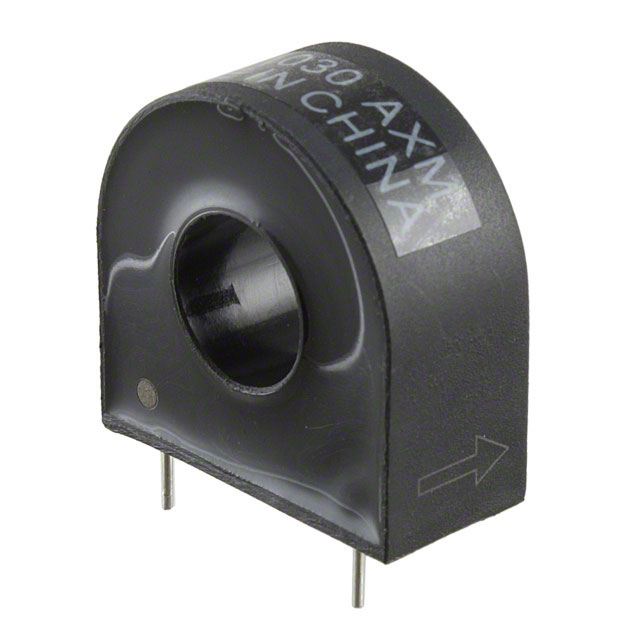

CST-1030
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy CST-1030 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CST-1030 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CST-1030 Datasheet| Part Number | CST-1030 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 30A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | CST-1030 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Current Sense Transformers |
| Description | CURR SENSE XFMR 30A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19369 pcs |
| Datasheet | CST-1030.pdf |
| Weight | 0.066 lb (29.94g) |
| Type | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin |
| Size / Dimension | 1.189" L x 0.563" W (30.20mm x 14.30mm) |
| Series | CST |
| Ratings | - |
| Packaging | Bulk |
| Other Names | 237-1618 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.189" (30.20mm) |
| Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - |
| Detailed Description | 30A Current Sense Transformer 50/60Hz 46 Ohm Through Hole |
| DC Resistance (DCR) | 46 Ohm |
| Current Ratio | 1000:1 |
| Current Rating | 30A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 19369 pcs of Triad MagneticsCST-1030 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
