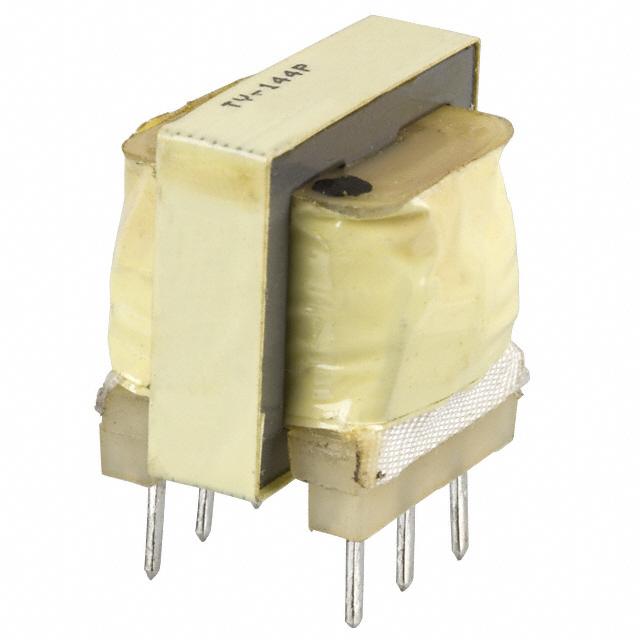

TY-144P-B
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy TY-144P-B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy TY-144P-B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload TY-144P-B Datasheet| Part Number | TY-144P-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSF 15K AUDIO CTAP/15K CTAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | TY-144P-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Audio Transformers |
| Description | TRANSF 15K AUDIO CTAP/15K CTAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30735 pcs |
| Datasheet | TY-144P-B.pdf |
| Voltage - Isolation | 1500V |
| Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin |
| Size / Dimension | 0.812" L x 0.700" W (20.62mm x 17.78mm) |
| Series | TY |
| Return Loss | 26dB |
| Power Level | - |
| Packaging | Bulk |
| Operating Temperature | 0°C ~ 105°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.5dB @ 1kHz |
| Impedance - Secondary (Ohms) | 15kCT |
| Impedance - Primary (Ohms) | 15kCT |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Frequency Response | ±2dB |
| Frequency Range | 200Hz ~ 15kHz |
| DC Resistance (DCR) - Secondary | 1.6 kOhm |
| DC Resistance (DCR) - Primary | 1.18 kOhm |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 30735 pcs of Triad MagneticsTY-144P-B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
