STL7N60M2
STMicroelectronics

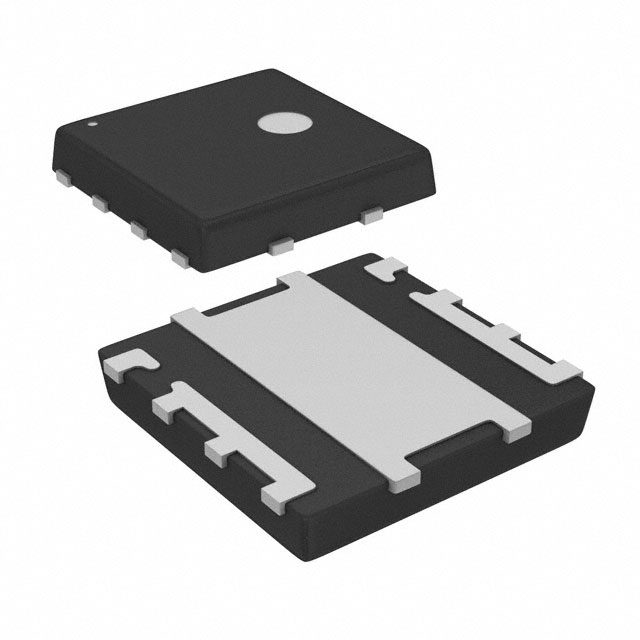

Images are for reference only.
See Product Specifications for product details.
Buy STL7N60M2 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STL7N60M2 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STL7N60M2 Datasheet| Part Number | STL7N60M2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 600V 5A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
3000pcs | |||||
|---|---|---|---|---|---|---|
| $0.25 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | STL7N60M2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 600V 5A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90669 pcs |
| Datasheet | STL7N60M2.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±25V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFLAT™ (5x5) |
| Series | MDmesh™ |
| Rds On (Max) @ Id, Vgs | 1.05 Ohm @ 2A, 10V |
| Power Dissipation (Max) | 4W (Ta), 67W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Other Names | 497-16519-2 STL7N60M2-ND |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 271pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 8.8nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 5A (Tc) 4W (Ta), 67W (Tc) Surface Mount PowerFLAT™ (5x5) |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 90669 pcs of STMicroelectronicsSTL7N60M2 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
