STG3692QTR
STMicroelectronics

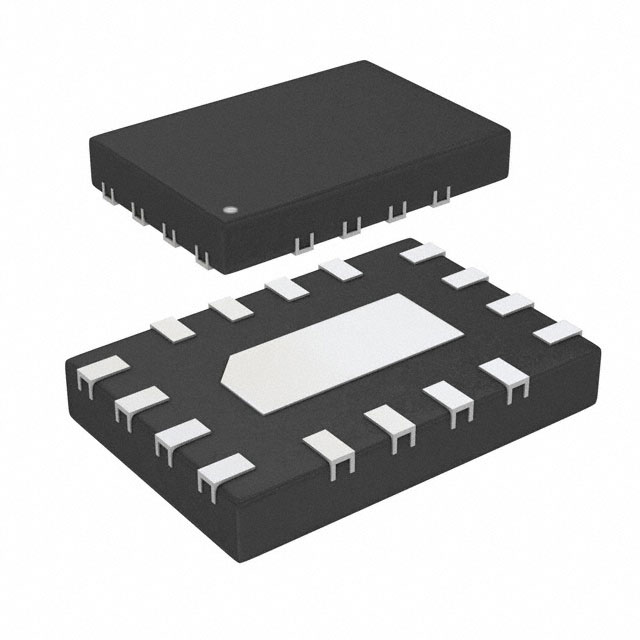

Images are for reference only.
See Product Specifications for product details.
Buy STG3692QTR with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STG3692QTR with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STG3692QTR Datasheet| Part Number | STG3692QTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC SWITCH QUAD SPDT 16QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STG3692QTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Description | IC SWITCH QUAD SPDT 16QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 162728 pcs |
| Datasheet | STG3692QTR.pdf |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.3 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 13ns |
| Switch Circuit | SPDT |
| Supplier Device Package | 16-QFN (2.6x1.8) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN Exposed Pad |
| Other Names | 497-7983-2 STG3692QTR-ND |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 5.2 Ohm |
| Number of Circuits | 4 |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 4 Circuit IC Switch 2:1 5.2 Ohm 16-QFN (2.6x1.8) |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -78dB @ 1MHz |
| Charge Injection | 5pC |
| Channel-to-Channel Matching (ΔRon) | 300 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Base Part Number | STG3692 |
| -3db Bandwidth | 800MHz |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 162728 pcs of STMicroelectronicsSTG3692QTR in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
