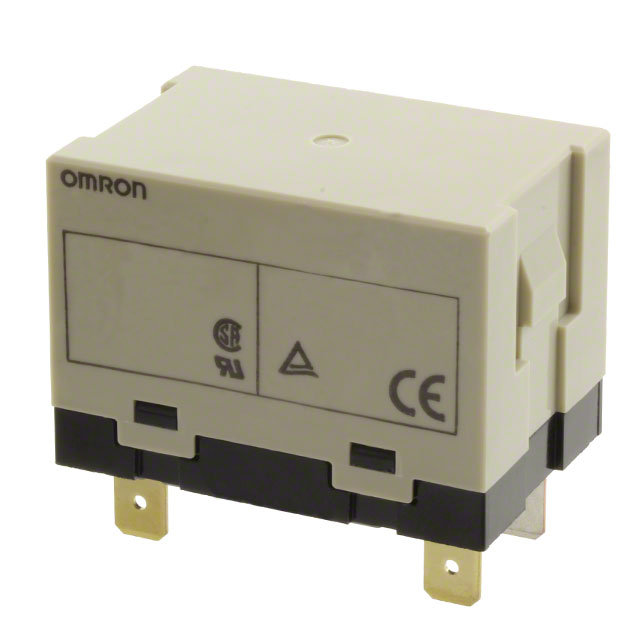

G7L-2A-T-CB-DC24
Omron
![Omron](/uploadfile/manufacturers/logo/Omron_medium.jpg)
Images are for reference only.
See Product Specifications for product details.
Buy G7L-2A-T-CB-DC24 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy G7L-2A-T-CB-DC24 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload G7L-2A-T-CB-DC24 DatasheetPart Number | G7L-2A-T-CB-DC24 |
---|---|
Manufacturer | Omron |
Description | RELAY GEN PURPOSE DPST 25A 24V |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
In Stock |
||||||
Reference Price (In US Dollars) |
1pcs | 10pcs | 25pcs | 50pcs | 250pcs | 500pcs |
---|---|---|---|---|---|---|
$5.126 | $4.556 | $4.328 | $4.10 | $3.531 | $3.303 |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
Part Number | G7L-2A-T-CB-DC24 |
---|---|
Manufacturer | Omron |
Product Category | Power Relays, Over 2 Amps |
Description | RELAY GEN PURPOSE DPST 25A 24V |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 12268 pcs |
Datasheet | G7L-2A-T-CB-DC24.pdf |
Turn On Voltage (Max) | 18 VDC |
Turn Off Voltage (Min) | 3.6 VDC |
Termination Style | Quick Connect - 0.250" (6.3mm) |
Switching Voltage | 250VAC - Max |
Series | G7L |
Release Time | 30ms |
Relay Type | General Purpose |
Packaging | Bulk |
Other Names | G7L-2A-T-CB-DC24-ND G7L2ATCBDC24 Z5244 |
Operating Temperature | -25°C ~ 60°C |
Operate Time | 30ms |
Mounting Type | Chassis Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Features | Insulation - Class B |
Detailed Description | General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Chassis Mount |
Contact Rating (Current) | 25A |
Contact Material | Silver Tin Indium (AgSnIn) |
Contact Form | DPST-NO (2 Form A) |
Coil Voltage | 24VDC |
Coil Type | Non Latching |
Coil Resistance | 303 Ohms |
Coil Power | 1.9 W |
Coil Current | 79.0mA |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 12268 pcs of OmronG7L-2A-T-CB-DC24 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
