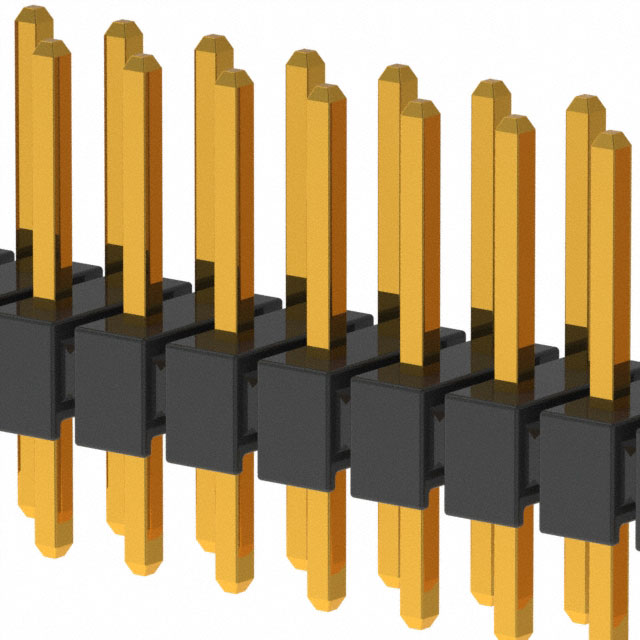

XG8W-4031
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XG8W-4031 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XG8W-4031 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XG8W-4031 Datasheet| Part Number | XG8W-4031 |
|---|---|
| Manufacturer | Omron |
| Description | PLUG 40POS DOUBLE ROW STRAIGHT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | XG8W-4031 |
|---|---|
| Manufacturer | Omron |
| Product Category | Rectangular Connectors - Headers, Male Pins |
| Description | PLUG 40POS DOUBLE ROW STRAIGHT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69861 pcs |
| Datasheet | XG8W-4031.pdf |
| Voltage Rating | 300V |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Series | XG8 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk |
| Overall Contact Length | 0.453" (11.50mm) |
| Other Names | OR1081 XG8W-4031-ND XG8W4031 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 40 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.098" (2.50mm) |
| Insulation Color | Black |
| Ingress Protection | - |
| Features | - |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Current Rating | 3A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Brass, Nickel |
| Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | 5.90µin (0.150µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
| Connector Type | Header |
| Applications | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 69861 pcs of OmronXG8W-4031 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
