XF2W-0615-1A
Omron

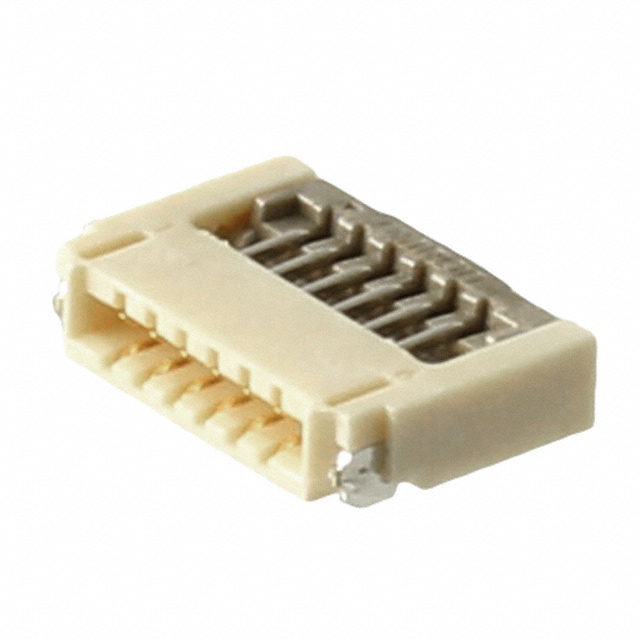

Images are for reference only.
See Product Specifications for product details.
Buy XF2W-0615-1A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XF2W-0615-1A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XF2W-0615-1A DatasheetPart Number | XF2W-0615-1A |
---|---|
Manufacturer | Omron |
Description | CONN FPC 6POS 0.50MM R/A |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
In Stock |
||||||
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
Part Number | XF2W-0615-1A |
---|---|
Manufacturer | Omron |
Product Category | FFC, FPC (Flat Flexible) Connectors |
Description | CONN FPC 6POS 0.50MM R/A |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5570 pcs |
Datasheet | XF2W-0615-1A.pdf |
Voltage Rating | 50V |
Termination | Solder |
Series | XF2W |
Pitch | 0.020" (0.50mm) |
Packaging | Tape & Reel (TR) |
Other Names | OR1190TR XF2W06151A |
Operating Temperature | -30°C ~ 85°C |
Number of Positions | 6 |
Mounting Type | Surface Mount, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mating Cycles | 20 |
Material Flammability Rating | UL94 V-0 |
Locking Feature | Rotary Lock, Backlock |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
Housing Color | Natural |
Height Above Board | 0.044" (1.12mm) |
Flat Flex Type | FPC |
Features | - |
FFC, FCB Thickness | 0.30mm |
Detailed Description | 6 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
Current Rating | 0.5A |
Contact Material | Copper Alloy |
Contact Finish Thickness | 5.90µin (0.150µm) |
Contact Finish | Gold |
Connector/Contact Type | Contacts, Top and Bottom |
Cable End Type | Tapered |
Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
Actuator Color | Brown |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 5570 pcs of OmronXF2W-0615-1A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
