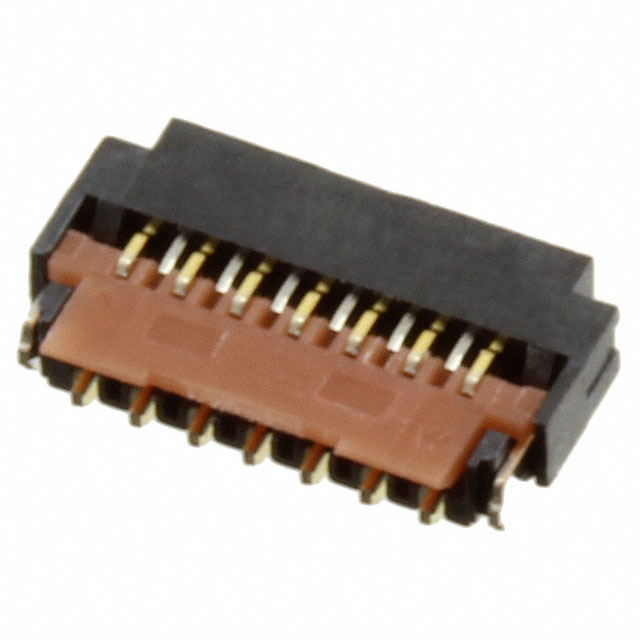

XF3Z-1355-31B
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XF3Z-1355-31B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XF3Z-1355-31B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XF3Z-1355-31B Datasheet| Part Number | XF3Z-1355-31B |
|---|---|
| Manufacturer | Omron |
| Description | FPC CONN 13POS .3MM SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | XF3Z-1355-31B |
|---|---|
| Manufacturer | Omron |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Description | FPC CONN 13POS .3MM SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5993 pcs |
| Datasheet | XF3Z-1355-31B.pdf |
| Voltage Rating | 50V |
| Termination | Solder |
| Series | XF3Z |
| Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) |
| Other Names | XF3Z-1355-31B BY OMZ XF3Z135531B XF3Z135531BBYOMZ Z5459TR |
| Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 13 |
| Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 |
| Locking Feature | Rotary Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Black |
| Height Above Board | 0.039" (1.00mm) |
| Flat Flex Type | FPC |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.20mm |
| Detailed Description | 13 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A |
| Contact Material | Copper Alloy |
| Contact Finish Thickness | Flash |
| Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free |
| Actuator Color | Brown |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 5993 pcs of OmronXF3Z-1355-31B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
