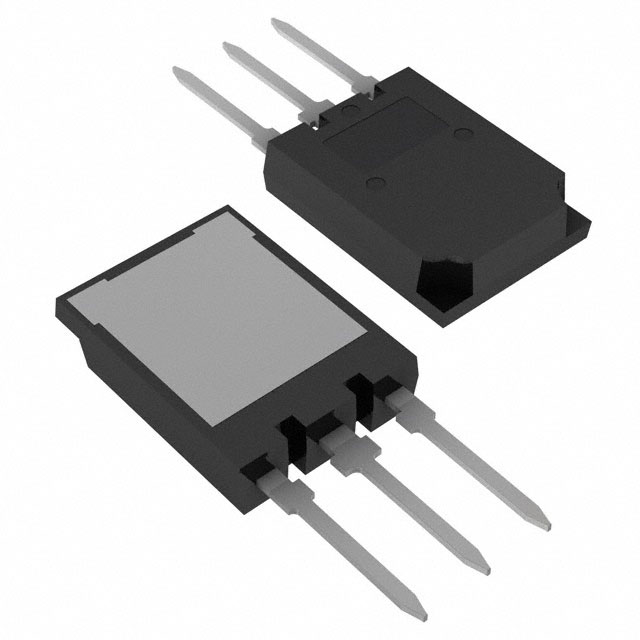

AIKQ120N60CTXKSA1
International Rectifier (Infineon Technologies)
_medium.jpg){kind=logo}
Images are for reference only.
See Product Specifications for product details.
Buy AIKQ120N60CTXKSA1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AIKQ120N60CTXKSA1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AIKQ120N60CTXKSA1 Datasheet| Part Number | AIKQ120N60CTXKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC DISCRETE 600V TO247-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 240pcs | |||
|---|---|---|---|---|---|---|
| $6.181 | $5.681 | $4.798 | ||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AIKQ120N60CTXKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Product Category | Transistors - IGBTs - Single |
| Description | IC DISCRETE 600V TO247-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6408 pcs |
| Datasheet | AIKQ120N60CTXKSA1.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 120A |
| Test Condition | 400V, 120A, 3 Ohm, 15V |
| Td (on/off) @ 25°C | 33ns/310ns |
| Switching Energy | 4.1mJ (on), 2.8mJ (off) |
| Supplier Device Package | PG-TO247-3-46 |
| Series | Automotive, AEC-Q101, TrenchStop™ |
| Power - Max | 833W |
| Package / Case | TO-247-3 |
| Other Names | SP001346794 |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Trench Field Stop |
| Gate Charge | 772nC |
| Detailed Description | IGBT Trench Field Stop 600V 160A 833W Through Hole PG-TO247-3-46 |
| Current - Collector Pulsed (Icm) | 480A |
| Current - Collector (Ic) (Max) | 160A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all International Rectifier (Infineon Technologies) series electronic components. We have 6408 pcs of International Rectifier (Infineon Technologies)AIKQ120N60CTXKSA1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
