ZX3CD1S1M832TA
Diodes Incorporated

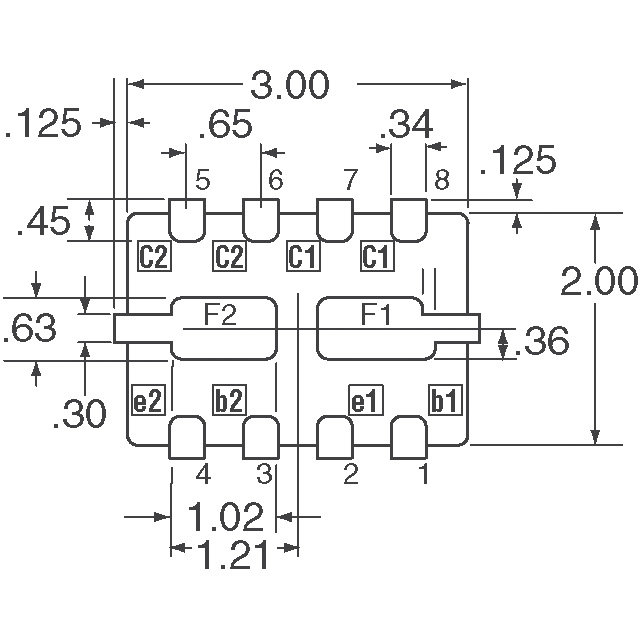

Images are for reference only.
See Product Specifications for product details.
Buy ZX3CD1S1M832TA with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ZX3CD1S1M832TA with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ZX3CD1S1M832TA Datasheet| Part Number | ZX3CD1S1M832TA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | TRANS PNP 12V 4A 3X2MM 8MLP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $0.448 | $0.40 | $0.312 | $0.258 | $0.203 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ZX3CD1S1M832TA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors - Bipolar (BJT) - Single |
| Description | TRANS PNP 12V 4A 3X2MM 8MLP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 100702 pcs |
| Datasheet | ZX3CD1S1M832TA.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 150mA, 4A |
| Transistor Type | PNP + Diode (Isolated) |
| Supplier Device Package | 8-MLP (2x3) |
| Series | - |
| Power - Max | 3W |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-VDFN Exposed Pad |
| Other Names | ZX3CD1S1M832TACT |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | 110MHz |
| Detailed Description | Bipolar (BJT) Transistor PNP + Diode (Isolated) 12V 4A 110MHz 3W Surface Mount 8-MLP (2x3) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 2.5A, 2V |
| Current - Collector Cutoff (Max) | 25nA |
| Current - Collector (Ic) (Max) | 4A |
| Base Part Number | ZX3CD1S1M832 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 100702 pcs of Diodes IncorporatedZX3CD1S1M832TA in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
