NCP59800BMNADJTBG
AMI Semiconductor / ON Semiconductor

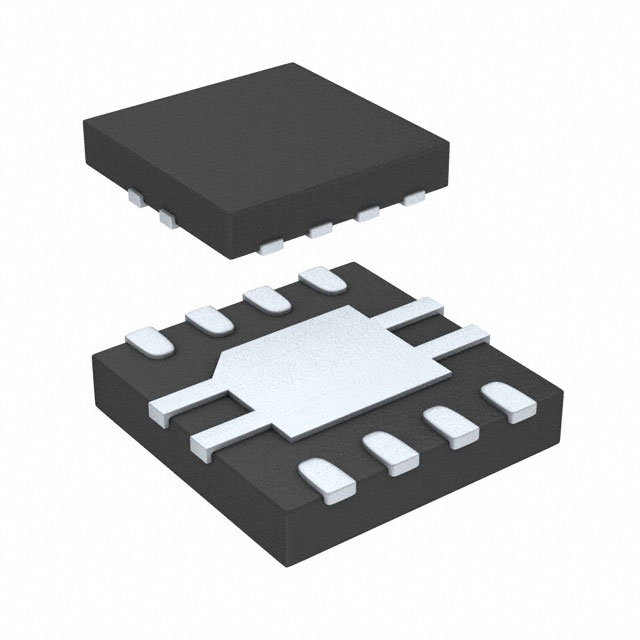

Images are for reference only.
See Product Specifications for product details.
Buy NCP59800BMNADJTBG with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NCP59800BMNADJTBG with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NCP59800BMNADJTBG Datasheet| Part Number | NCP59800BMNADJTBG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG LINEAR POS ADJ 1A 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | NCP59800BMNADJTBG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Voltage Regulators - Linear |
| Description | IC REG LINEAR POS ADJ 1A 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 347172 pcs |
| Datasheet | NCP59800BMNADJTBG.pdf |
| Voltage Dropout (Max) | 0.5V @ 1A |
| Voltage - Output (Min/Fixed) | 2.2V |
| Voltage - Output (Max) | 6V |
| Voltage - Input (Max) | 6V |
| Supplier Device Package | 8-DFN (3x3) |
| Series | - |
| Protection Features | Over Current, Over Temperature |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN |
| PSRR | 77dB ~ 27dB (100Hz ~ 1MHz) |
| Output Type | Adjustable |
| Output Configuration | Positive |
| Other Names | NCP59800BMNADJTBGOSTR |
| Operating Temperature | -40°C ~ 125°C |
| Number of Regulators | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 2.2 V ~ 6 V 1A 8-DFN (3x3) |
| Current - Quiescent (Iq) | 450µA |
| Current - Output | 1A |
| Control Features | Enable |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 347172 pcs of AMI Semiconductor / ON SemiconductorNCP59800BMNADJTBG in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
