FAN8741MTFX
AMI Semiconductor / ON Semiconductor

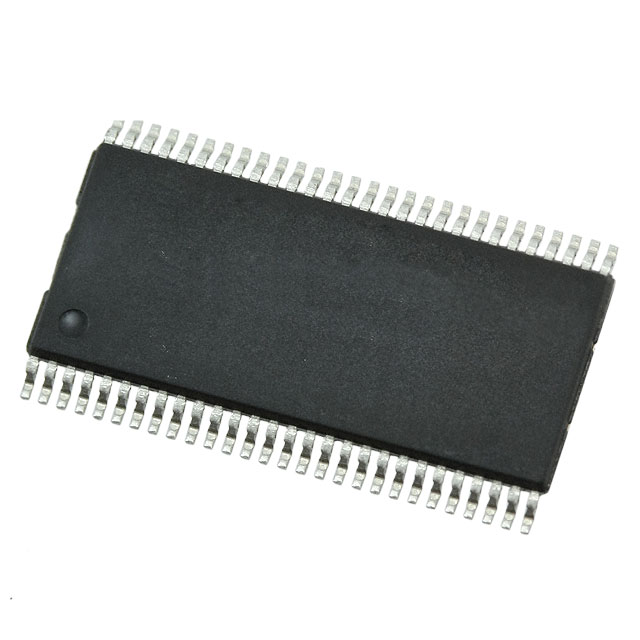

Images are for reference only.
See Product Specifications for product details.
Buy FAN8741MTFX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FAN8741MTFX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FAN8741MTFX Datasheet| Part Number | FAN8741MTFX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER PAR 56TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | FAN8741MTFX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | PMIC - Motor Drivers, Controllers |
| Description | IC MOTOR DRIVER PAR 56TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4604 pcs |
| Datasheet | FAN8741MTFX.pdf |
| Voltage - Supply | 4.5 V ~ 13.2 V |
| Voltage - Load | 4.5 V ~ 13.2 V |
| Technology | DMOS |
| Supplier Device Package | 56-TSSOP-EP |
| Step Resolution | - |
| Series | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) Exposed Pad |
| Output Configuration | Half Bridge (7) |
| Other Names | FAN8741MTFX_NLCT FAN8741MTFX_NLCT-ND FAN8741MTFXCT |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Motor Driver DMOS Parallel 56-TSSOP-EP |
| Current - Output | 2A, 1A |
| Base Part Number | FAN8741 |
| Applications | Media Player |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 4604 pcs of AMI Semiconductor / ON SemiconductorFAN8741MTFX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
