FDQ7698S
AMI Semiconductor / ON Semiconductor

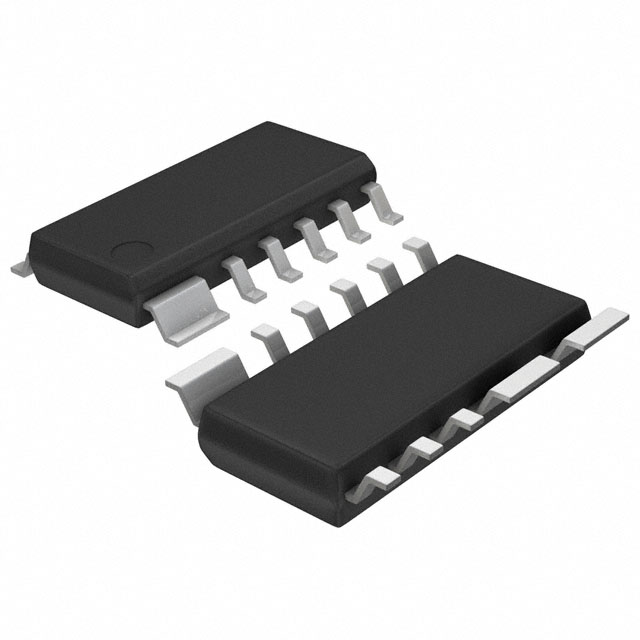

Images are for reference only.
See Product Specifications for product details.
Buy FDQ7698S with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDQ7698S with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDQ7698S Datasheet| Part Number | FDQ7698S |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N-CH 30V 12A/15A 14SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | FDQ7698S |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Description | MOSFET 2N-CH 30V 12A/15A 14SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5058 pcs |
| Datasheet | FDQ7698S.pdf |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 14-SO |
| Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 7.5 mOhm @ 15A, 10V |
| Power - Max | 1.1W, 1.3W |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1324pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 5V |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 30V 12A, 15A 1.1W, 1.3W Surface Mount 14-SO |
| Current - Continuous Drain (Id) @ 25°C | 12A, 15A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5058 pcs of AMI Semiconductor / ON SemiconductorFDQ7698S in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
