FDMC5614P
AMI Semiconductor / ON Semiconductor

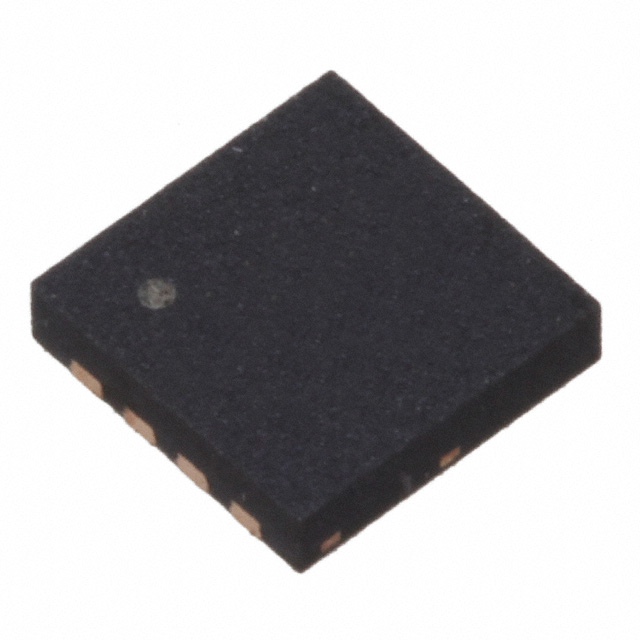

Images are for reference only.
See Product Specifications for product details.
Buy FDMC5614P with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC5614P with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FDMC5614P Datasheet| Part Number | FDMC5614P |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET P-CH 60V 5.7A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | FDMC5614P |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET P-CH 60V 5.7A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109738 pcs |
| Datasheet | FDMC5614P.pdf |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 5.7A, 10V |
| Power Dissipation (Max) | 2.1W (Ta), 42W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Other Names | FDMC5614PTR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1055pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V |
| FET Type | P-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | P-Channel 60V 5.7A (Ta), 13.5A (Tc) 2.1W (Ta), 42W (Tc) Surface Mount 8-MLP (3.3x3.3) |
| Current - Continuous Drain (Id) @ 25°C | 5.7A (Ta), 13.5A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 109738 pcs of AMI Semiconductor / ON SemiconductorFDMC5614P in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
