NTTFS4800NTWG
AMI Semiconductor / ON Semiconductor

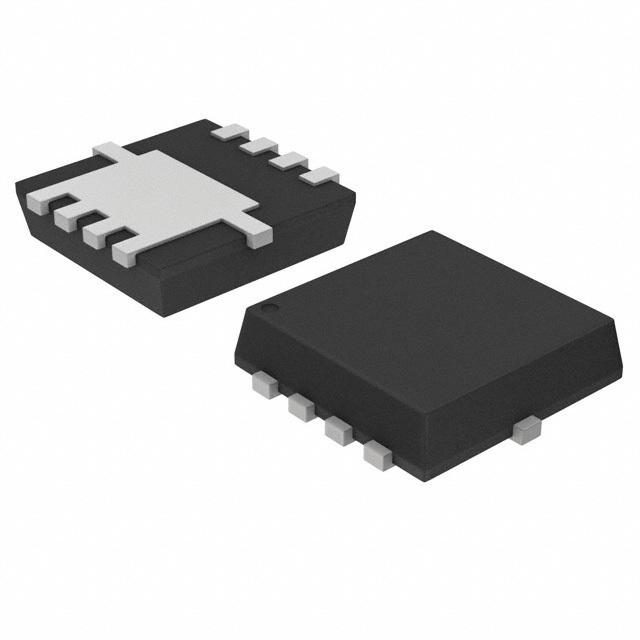

Images are for reference only.
See Product Specifications for product details.
Buy NTTFS4800NTWG with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy NTTFS4800NTWG with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload NTTFS4800NTWG DatasheetPart Number | NTTFS4800NTWG |
---|---|
Manufacturer | AMI Semiconductor / ON Semiconductor |
Description | MOSFET N-CH 30V 5A 8WDFN |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
In Stock |
||||||
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
Part Number | NTTFS4800NTWG |
---|---|
Manufacturer | AMI Semiconductor / ON Semiconductor |
Product Category | Transistors - FETs, MOSFETs - Single |
Description | MOSFET N-CH 30V 5A 8WDFN |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5088 pcs |
Datasheet | NTTFS4800NTWG.pdf |
Vgs(th) (Max) @ Id | 3V @ 250µA |
Vgs (Max) | ±20V |
Technology | MOSFET (Metal Oxide) |
Supplier Device Package | 8-WDFN (3.3x3.3) |
Series | - |
Rds On (Max) @ Id, Vgs | 20 mOhm @ 20A, 10V |
Power Dissipation (Max) | 860mW (Ta), 33.8W (Tc) |
Packaging | Tape & Reel (TR) |
Package / Case | 8-PowerWDFN |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Input Capacitance (Ciss) (Max) @ Vds | 964pF @ 15V |
Gate Charge (Qg) (Max) @ Vgs | 16.6nC @ 10V |
FET Type | N-Channel |
FET Feature | - |
Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 11.5V |
Drain to Source Voltage (Vdss) | 30V |
Detailed Description | N-Channel 30V 5A (Ta), 32A (Tc) 860mW (Ta), 33.8W (Tc) Surface Mount 8-WDFN (3.3x3.3) |
Current - Continuous Drain (Id) @ 25°C | 5A (Ta), 32A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 5088 pcs of AMI Semiconductor / ON SemiconductorNTTFS4800NTWG in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
