FGA60N65SMD
AMI Semiconductor / ON Semiconductor

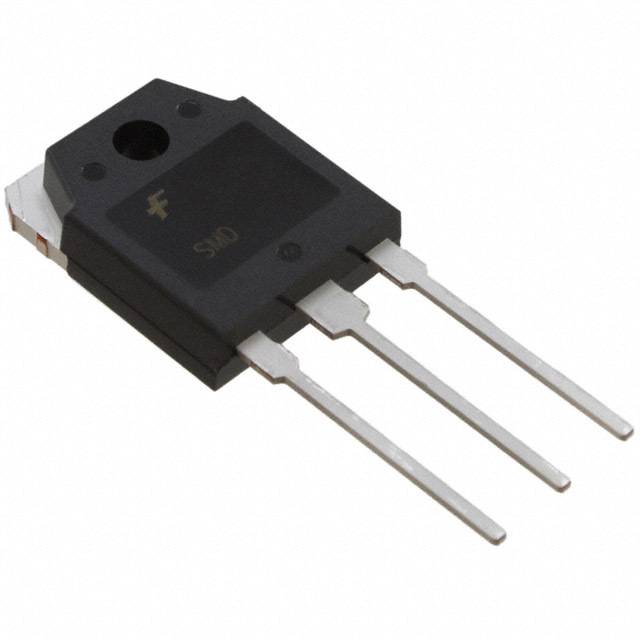

Images are for reference only.
See Product Specifications for product details.
Buy FGA60N65SMD with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FGA60N65SMD with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FGA60N65SMD Datasheet| Part Number | FGA60N65SMD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 650V 120A 600W TO3P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | FGA60N65SMD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 650V 120A 600W TO3P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36734 pcs |
| Datasheet | FGA60N65SMD.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 60A |
| Test Condition | 400V, 60A, 3 Ohm, 15V |
| Td (on/off) @ 25°C | 18ns/104ns |
| Switching Energy | 1.54mJ (on), 450µJ (off) |
| Supplier Device Package | TO-3PN |
| Series | - |
| Reverse Recovery Time (trr) | 47ns |
| Power - Max | 600W |
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Other Names | FGA60N65SMD-ND FGA60N65SMDFS |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Field Stop |
| Gate Charge | 189nC |
| Detailed Description | IGBT Field Stop 650V 120A 600W Through Hole TO-3PN |
| Current - Collector Pulsed (Icm) | 180A |
| Current - Collector (Ic) (Max) | 120A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all AMI Semiconductor / ON Semiconductor series electronic components. We have 36734 pcs of AMI Semiconductor / ON SemiconductorFGA60N65SMD in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
