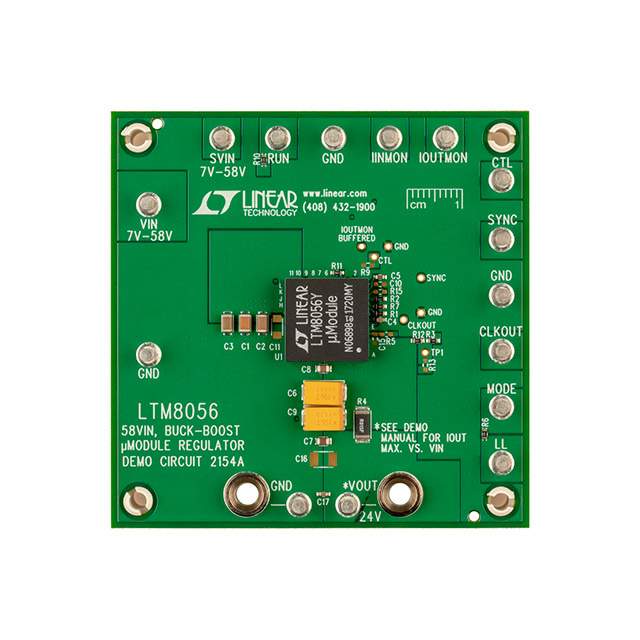

DC2154A
ADI (Analog Devices, Inc.)
Images are for reference only.
See Product Specifications for product details.
Buy DC2154A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DC2154A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DC2154A Datasheet| Part Number | DC2154A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | EVAL BOARD FOR LTM8056 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | DC2154A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Description | EVAL BOARD FOR LTM8056 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1403 pcs |
| Datasheet | DC2154A.pdf |
| Voltage - Output | 24V |
| Voltage - Input | 7 V ~ 58 V |
| Utilized IC / Part | LTM8056 |
| Supplied Contents | Board(s) |
| Series | µModule® |
| Regulator Topology | Buck-Boost |
| Outputs and Type | 1, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Up or Down |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 525kHz |
| Detailed Description | LTM8056 µModule® DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | 3A |
| Board Type | Fully Populated |
| Base Part Number | LTM8056 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 1403 pcs of ADI (Analog Devices, Inc.)DC2154A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
