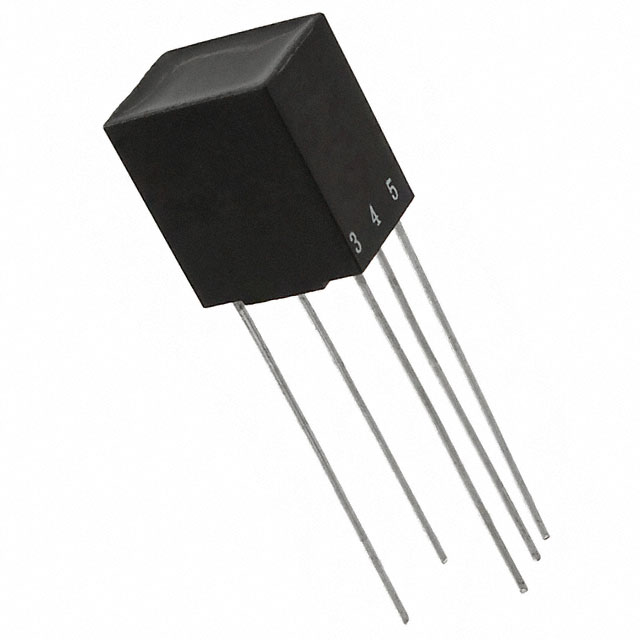

MET-60-T
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy MET-60-T with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy MET-60-T with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload MET-60-T Datasheet| Part Number | MET-60-T |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSFORMER 135:135CT 10.0MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 25pcs | 50pcs | 250pcs | 500pcs |
|---|---|---|---|---|---|---|
| $4.034 | $3.089 | $2.617 | $2.574 | $2.42 | $2.385 | |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | MET-60-T |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Audio Transformers |
| Description | TRANSFORMER 135:135CT 10.0MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16410 pcs |
| Datasheet | MET-60-T.pdf |
| Weight | - |
| Voltage - Isolation | 1000VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | Audio Coupling |
| Termination Style | PC Pin |
| Size / Dimension | 0.409" L x 0.310" W (10.40mm x 7.87mm) |
| Series | MET |
| Return Loss | - |
| Power Level | 50mW |
| Packaging | Bulk |
| Other Names | 237-1464 MET-60-T-B MET-60-T-B-ND MET60T |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - |
| Impedance - Secondary (Ohms) | 135CT |
| Impedance - Primary (Ohms) | 135 |
| Height - Seated (Max) | 0.465" (11.80mm) |
| Frequency Response | ±2dB |
| Frequency Range | 300Hz ~ 100kHz |
| DC Resistance (DCR) - Secondary | 10.8 Ohm |
| DC Resistance (DCR) - Primary | 10.5 Ohm |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 16410 pcs of Triad MagneticsMET-60-T in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
