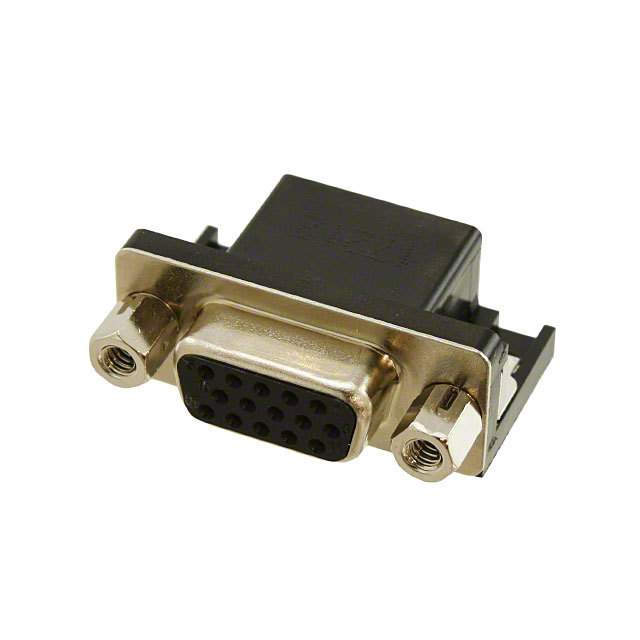

XM4L-1542-132
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XM4L-1542-132 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XM4L-1542-132 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XM4L-1542-132 Datasheet| Part Number | XM4L-1542-132 |
|---|---|
| Manufacturer | Omron |
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 25pcs | 50pcs | 250pcs | 500pcs |
|---|---|---|---|---|---|---|
| $0.823 | $0.791 | $0.725 | $0.692 | $0.577 | $0.56 | |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XM4L-1542-132 |
|---|---|
| Manufacturer | Omron |
| Product Category | D-Sub Connectors |
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71378 pcs |
| Datasheet | XM4L-1542-132.pdf |
| Wire Gauge | - |
| Voltage Rating | 300V |
| Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Shell Material, Finish | Steel |
| Series | XM4L |
| Packaging | Bulk |
| Other Names | OR1096 XM4L-1542-132-ND XM4L1542132 XM4L1542132NC |
| Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 3 |
| Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Shielded |
| Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 3A |
| Contact Type | Signal |
| Contact Material | Phosphor Bronze |
| Contact Form | - |
| Contact Finish Thickness | Flash |
| Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, High Density |
| Color | Black |
| Backset Spacing | 0.350" (8.89mm) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 71378 pcs of OmronXM4L-1542-132 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
