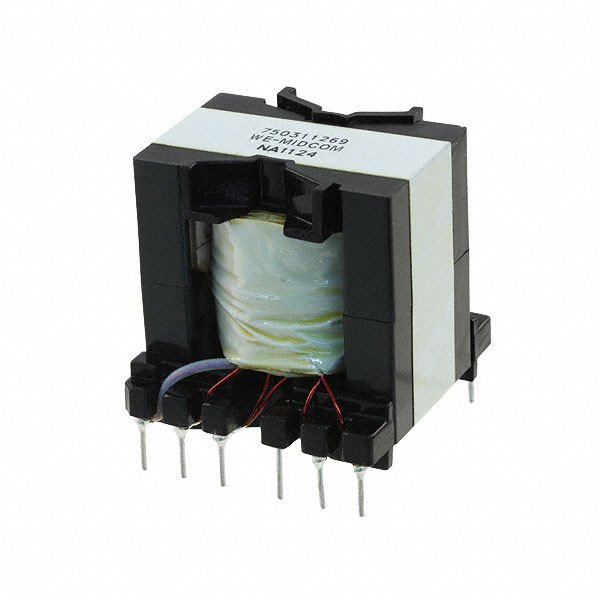

750311269
Midcom / Wurth Electronics
Images are for reference only.
See Product Specifications for product details.
Buy 750311269 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 750311269 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 750311269 DatasheetPart Number | 750311269 |
---|---|
Manufacturer | Midcom / Wurth Electronics |
Description | TRANSFORMER FLYBACK NCL30001 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
In Stock |
||||||
Reference Price (In US Dollars) |
1pcs | 10pcs | 50pcs | 100pcs | 500pcs | |
---|---|---|---|---|---|---|
$6.316 | $6.235 | $5.845 | $5.261 | $4.676 |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
Part Number | 750311269 |
---|---|
Manufacturer | Midcom / Wurth Electronics |
Product Category | Switching Converter, SMPS Transformers |
Description | TRANSFORMER FLYBACK NCL30001 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6692 pcs |
Datasheet | 750311269.pdf |
Voltage - Primary | 85 ~ 265V |
Voltage - Isolation | 3750Vrms |
Voltage - Auxiliary | - |
Type | For AC/DC Converters |
Size / Dimension | 1.400" L x 1.470" W (35.56mm x 37.34mm) |
Series | WE-FB, MID-OLON |
Packaging | Tray |
Other Names | 732-3199 |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Intended Chipset | NLC30001 |
Inductance @ Frequency | 600µH @ 10kHz |
Height - Seated (Max) | 1.355" (34.42mm) |
Frequency | 70kHz |
Footprint | 1.400" L x 1.470" W (35.56mm x 37.34mm) |
Chipset Manufacturer | On Semiconductor |
Applications | Flyback Converters |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Midcom / Wurth Electronics series electronic components. We have 6692 pcs of Midcom / Wurth Electronics750311269 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
