DMS3016SFG-7
Diodes Incorporated

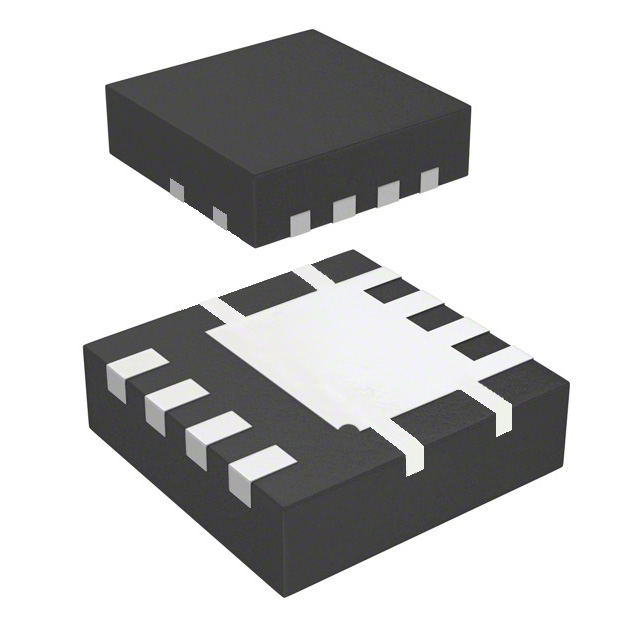

Images are for reference only.
See Product Specifications for product details.
Buy DMS3016SFG-7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DMS3016SFG-7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DMS3016SFG-7 Datasheet| Part Number | DMS3016SFG-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N-CH 30V 7A PWRDI3333-8 |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
2000pcs | |||||
|---|---|---|---|---|---|---|
| $0.091 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DMS3016SFG-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 30V 7A PWRDI3333-8 |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 260505 pcs |
| Datasheet | DMS3016SFG-7.pdf |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerDI3333-8 |
| Series | - |
| Rds On (Max) @ Id, Vgs | 13 mOhm @ 11.2A, 10V |
| Power Dissipation (Max) | 980mW (Ta) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1886pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 44.6nC @ 10V |
| FET Type | N-Channel |
| FET Feature | Schottky Diode (Body) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 7A (Ta) 980mW (Ta) Surface Mount PowerDI3333-8 |
| Current - Continuous Drain (Id) @ 25°C | 7A (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 260505 pcs of Diodes IncorporatedDMS3016SFG-7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
