PAM2306AYPAA
Diodes Incorporated

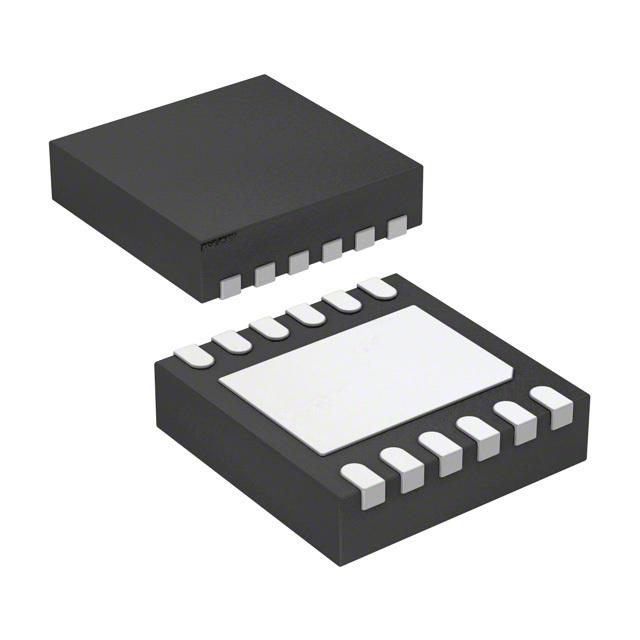

Images are for reference only.
See Product Specifications for product details.
Buy PAM2306AYPAA with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PAM2306AYPAA with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PAM2306AYPAA Datasheet| Part Number | PAM2306AYPAA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REG BUCK ADJ 1A DL SYNC 12DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
3000pcs | 6000pcs | 15000pcs | 30000pcs | ||
|---|---|---|---|---|---|---|
| $0.098 | $0.092 | $0.088 | $0.085 | |||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | PAM2306AYPAA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Description | IC REG BUCK ADJ 1A DL SYNC 12DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 240035 pcs |
| Datasheet | PAM2306AYPAA.pdf |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 12-WDFN (3x3) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Output Configuration | Positive |
| Other Names | PAM2306AYPAADI PAM2306AYPAADI-ND PAM2306AYPAADITR |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down |
| Frequency - Switching | 1.5MHz |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 0.6V 2 Output 1A 12-WFDFN Exposed Pad |
| Current - Output | 1A |
| Base Part Number | PAM2306 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 240035 pcs of Diodes IncorporatedPAM2306AYPAA in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
