PI3A2268ZMEX
Diodes Incorporated

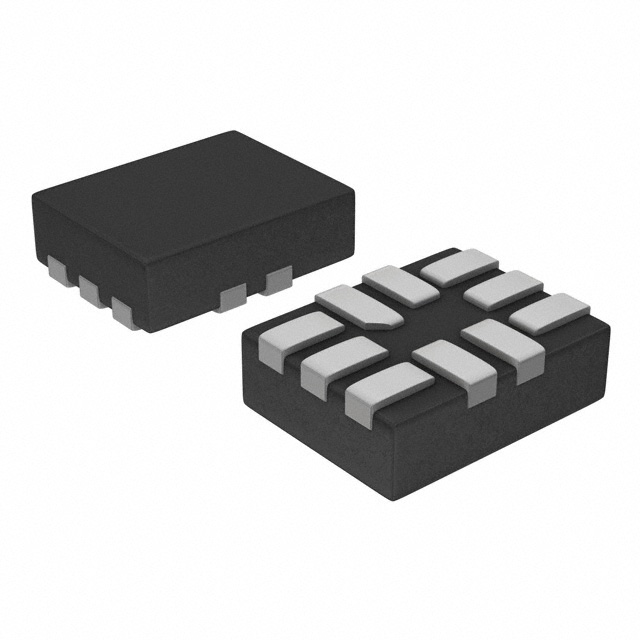

Images are for reference only.
See Product Specifications for product details.
Buy PI3A2268ZMEX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PI3A2268ZMEX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PI3A2268ZMEX Datasheet| Part Number | PI3A2268ZMEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC SWITCH DUAL SPDT 135QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
3000pcs | |||||
|---|---|---|---|---|---|---|
| $0.127 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | PI3A2268ZMEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Description | IC SWITCH DUAL SPDT 135QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156458 pcs |
| Datasheet | PI3A2268ZMEX.pdf |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.2 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 13ns, 12ns |
| Switch Circuit | SPDT |
| Supplier Device Package | 10-UQFN (1.4x1.8) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFQFN |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 750 mOhm |
| Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 2:1 750 mOhm 10-UQFN (1.4x1.8) |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -110dB @ 1MHz |
| Charge Injection | 50pC |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 20pF |
| -3db Bandwidth | 84MHz |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 156458 pcs of Diodes IncorporatedPI3A2268ZMEX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
