DMC21D1UDA-7B
Diodes Incorporated

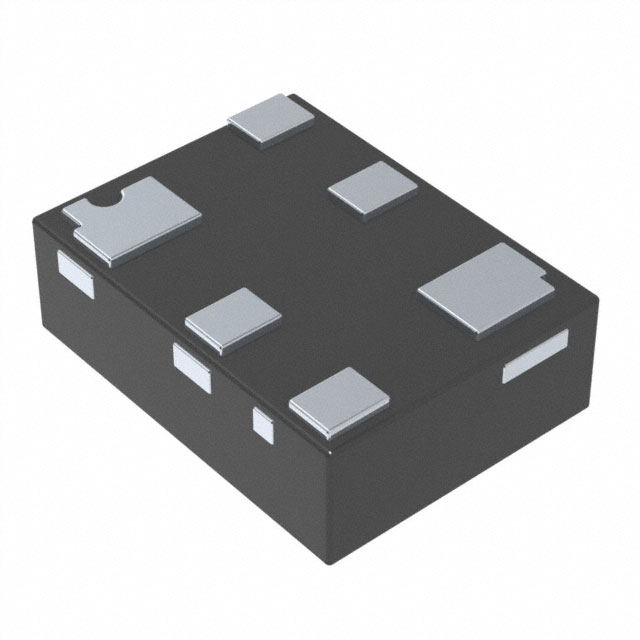

Images are for reference only.
See Product Specifications for product details.
Buy DMC21D1UDA-7B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DMC21D1UDA-7B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DMC21D1UDA-7B Datasheet| Part Number | DMC21D1UDA-7B |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N/P-CH 20V X2DFN0806-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
10000pcs | |||||
|---|---|---|---|---|---|---|
| $0.041 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DMC21D1UDA-7B |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Description | MOSFET N/P-CH 20V X2DFN0806-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 567200 pcs |
| Datasheet | DMC21D1UDA-7B.pdf |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | X2-DFN0806-6 |
| Series | - |
| Rds On (Max) @ Id, Vgs | 990 mOhm @ 100mA, 4.5V, 1.9 Ohm @ 100mA, 4.5V |
| Power - Max | 300mW |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Other Names | DMC21D1UDA-7B-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 31pF @ 15V, 28.5pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 0.41nC @ 4.5V, 0.4nC @ 4.5V |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array N and P-Channel 20V 455mA (Ta), 328mA (Ta) 300mW Surface Mount X2-DFN0806-6 |
| Current - Continuous Drain (Id) @ 25°C | 455mA (Ta), 328mA (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 567200 pcs of Diodes IncorporatedDMC21D1UDA-7B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
