PI5A3158BZAEX
Diodes Incorporated

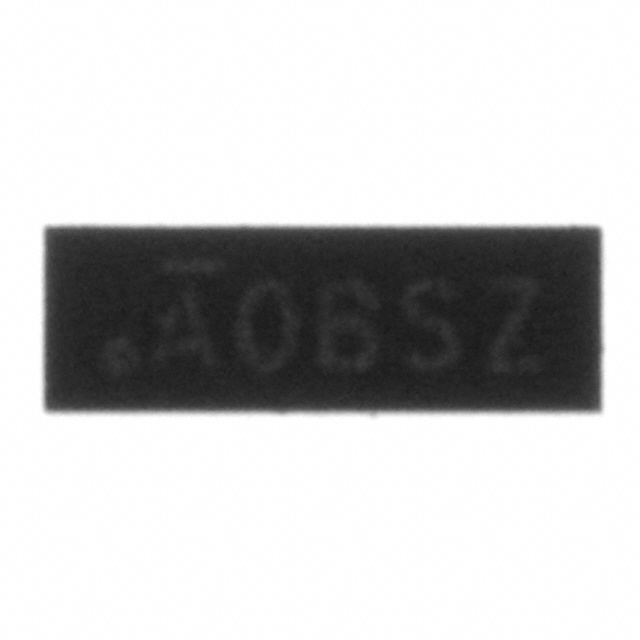

Images are for reference only.
See Product Specifications for product details.
Buy PI5A3158BZAEX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PI5A3158BZAEX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PI5A3158BZAEX Datasheet| Part Number | PI5A3158BZAEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC SWITCH DUAL SPDT 12TDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
3500pcs | 7000pcs | 10500pcs | 24500pcs | ||
|---|---|---|---|---|---|---|
| $0.057 | $0.053 | $0.05 | $0.047 | |||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | PI5A3158BZAEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Description | IC SWITCH DUAL SPDT 12TDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 427886 pcs |
| Datasheet | PI5A3158BZAEX.pdf |
| Voltage - Supply, Single (V+) | 1.65 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | - |
| Switch Circuit | SPDT |
| Supplier Device Package | 12-TDFN (3x1) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN |
| Other Names | PI5A3158BZAEX-ND PI5A3158BZAEXDITR |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 11 Ohm |
| Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 2:1 11 Ohm 12-TDFN (3x1) |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | - |
| Charge Injection | 5pC |
| Channel-to-Channel Matching (ΔRon) | 150 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF |
| -3db Bandwidth | 350MHz |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 427886 pcs of Diodes IncorporatedPI5A3158BZAEX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
