DMN2016LHAB-7
Diodes Incorporated

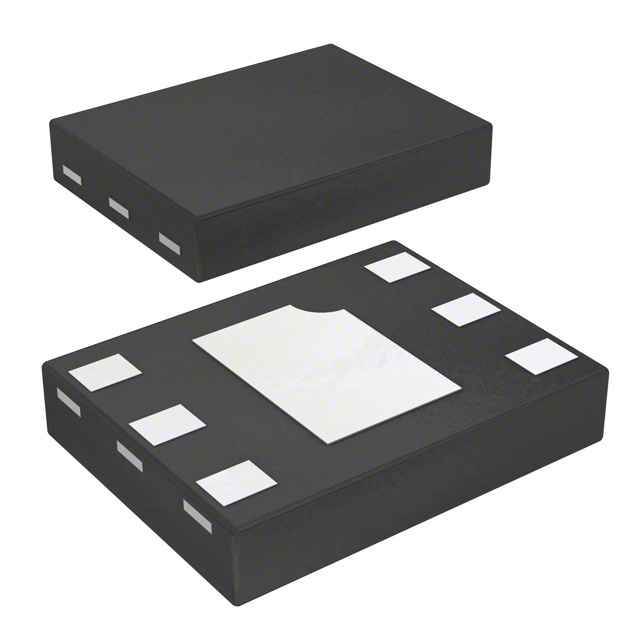

Images are for reference only.
See Product Specifications for product details.
Buy DMN2016LHAB-7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DMN2016LHAB-7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DMN2016LHAB-7 Datasheet| Part Number | DMN2016LHAB-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET 2N-CH 20V 7.5A 6UDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
3000pcs | |||||
|---|---|---|---|---|---|---|
| $0.089 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DMN2016LHAB-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Description | MOSFET 2N-CH 20V 7.5A 6UDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 227991 pcs |
| Datasheet | DMN2016LHAB-7.pdf |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Supplier Device Package | U-DFN2030-6 |
| Series | - |
| Rds On (Max) @ Id, Vgs | 15.5 mOhm @ 4A, 4.5V |
| Power - Max | 1.2W |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Other Names | DMN2016LHAB-7DITR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1550pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 16nC @ 4.5V |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) Common Drain 20V 7.5A 1.2W Surface Mount U-DFN2030-6 |
| Current - Continuous Drain (Id) @ 25°C | 7.5A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 227991 pcs of Diodes IncorporatedDMN2016LHAB-7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
