DGD0506AM10-13
Diodes Incorporated

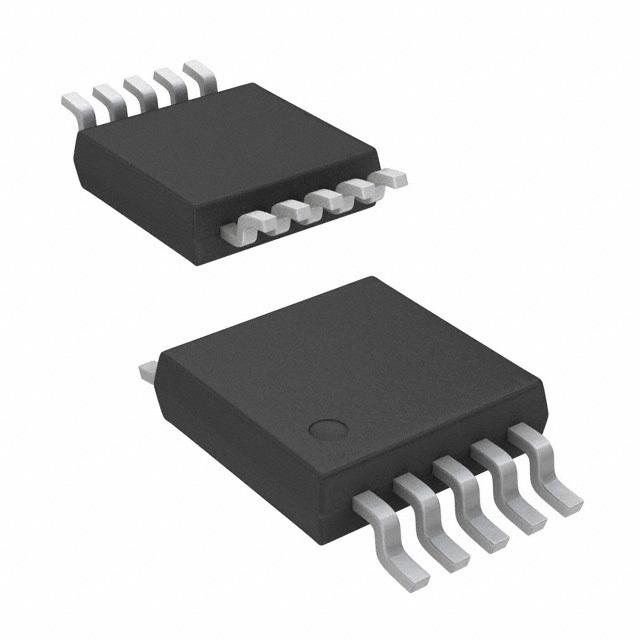

Images are for reference only.
See Product Specifications for product details.
Buy DGD0506AM10-13 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy DGD0506AM10-13 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload DGD0506AM10-13 Datasheet| Part Number | DGD0506AM10-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC GATE HV DRIVER MSOP-10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
2500pcs | 5000pcs | 12500pcs | 25000pcs | ||
|---|---|---|---|---|---|---|
| $0.079 | $0.073 | $0.071 | $0.068 | |||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | DGD0506AM10-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | PMIC - Gate Drivers |
| Description | IC GATE HV DRIVER MSOP-10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 316369 pcs |
| Datasheet | DGD0506AM10-13.pdf |
| Voltage - Supply | 8 V ~ 14 V |
| Supplier Device Package | 10-MSOP |
| Series | - |
| Rise / Fall Time (Typ) | 17ns, 12ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Other Names | DGD0506AM10-13DITR |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Drivers | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | CMOS/TTL |
| High Side Voltage - Max (Bootstrap) | 50V |
| Gate Type | N-Channel MOSFET |
| Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC CMOS/TTL 10-MSOP |
| Current - Peak Output (Source, Sink) | 1.5A, 2A |
| Channel Type | Single |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Diodes Incorporated series electronic components. We have 316369 pcs of Diodes IncorporatedDGD0506AM10-13 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
