C016 10E014 003 1
Amphenol Tuchel Electronics

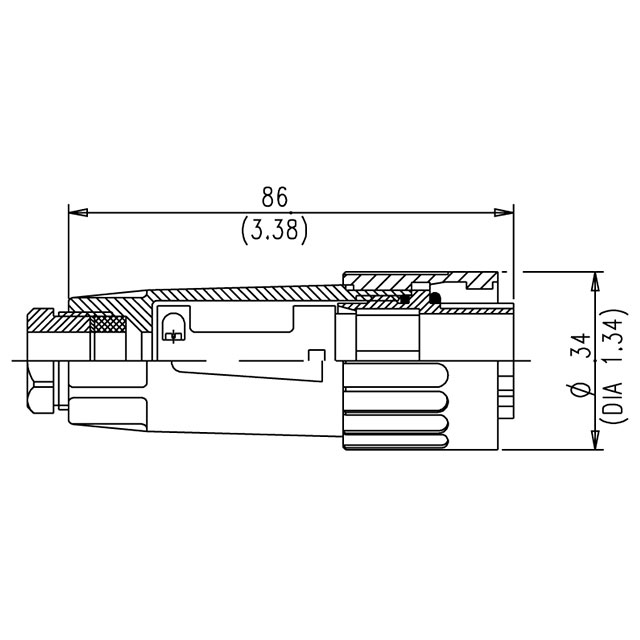

Images are for reference only.
See Product Specifications for product details.
Buy C016 10E014 003 1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy C016 10E014 003 1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload C016 10E014 003 1 Datasheet| Part Number | C016 10E014 003 1 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN PLUG HSG FMALE 15POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
100pcs | |||||
|---|---|---|---|---|---|---|
| $5.117 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | C016 10E014 003 1 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Product Category | Circular Connectors - Housings |
| Description | CONN PLUG HSG FMALE 15POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7731 pcs |
| Datasheet | C016 10E014 003 1.pdf |
| Type | For Female Sockets |
| Shielding | Unshielded |
| Shell Size, MIL | - |
| Shell Size - Insert | 1 |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Finish | - |
| Series | C 16-3 |
| Packaging | Bulk |
| Other Names | C016 10E014 003 1-ND C01610E0140031 |
| Orientation | N (Normal) |
| Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 15 (14 + PE) |
| Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Includes | 9 pcs - 1 Connector, 1 Backshell, 2 pc Cable Clamp, 1 Cable Nut, 1 Gasket, 2 Screws, 1 Washer |
| Housing Color | Black |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Fastening Type | Bayonet Lock |
| Detailed Description | 15 (14 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut |
| Coupling Nut Material, Plating | Polyamide (PA66), Nylon 6/6 |
| Coupling Nut Diameter | 1.339" (34.00mm) |
| Contact Type | Crimp |
| Contact Size | 1.5mm (11), 2.5mm (4) |
| Contact Shape | Circular |
| Connector Type | Plug Housing |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Amphenol Tuchel Electronics series electronic components. We have 7731 pcs of Amphenol Tuchel ElectronicsC016 10E014 003 1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
