TM1PB-AU
Amphenol Tuchel Electronics

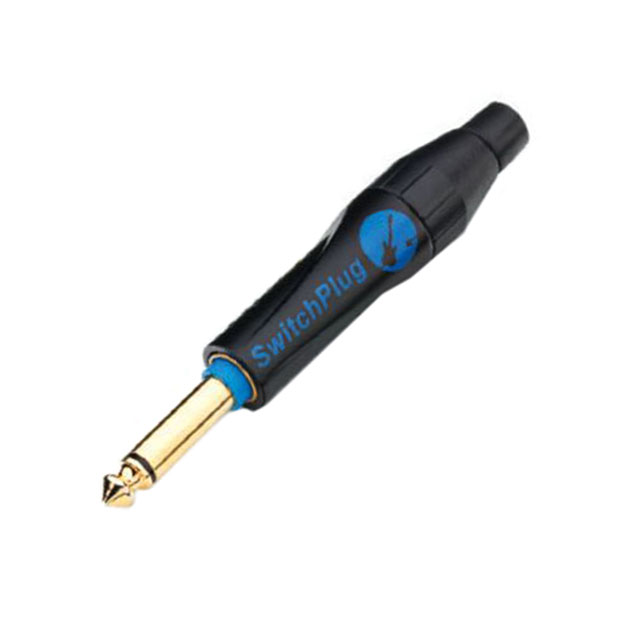

Images are for reference only.
See Product Specifications for product details.
Buy TM1PB-AU with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy TM1PB-AU with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload TM1PB-AU Datasheet| Part Number | TM1PB-AU |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN SWITCH PLUG 1/4" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 25pcs | 50pcs | 250pcs | 500pcs |
|---|---|---|---|---|---|---|
| $4.246 | $3.859 | $3.762 | $3.473 | $2.991 | $2.798 | |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | TM1PB-AU |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Product Category | Barrel - Audio Connectors |
| Description | CONN SWITCH PLUG 1/4" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14423 pcs |
| Datasheet | TM1PB-AU.pdf |
| Voltage - Rated | - |
| Thread Size | - |
| Termination | Solder Cup |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Unshielded |
| Series | T |
| Panel Hole Size | - |
| Packaging | Bulk |
| Other Names | 889-1879 |
| Operating Temperature | -25°C ~ 75°C |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Free Hanging (In-Line) |
| Mating Length/Depth | 1.190" (30.30mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Includes | 4 pcs - 1 Connector, 2 pc Cover, 1 Strain Relief |
| Housing Material | Zinc Alloy |
| Gender | Male |
| Features | - |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Cup |
| Current Rating | 10A |
| Contact Material - Plating | Gold |
| Contact Material | Brass |
| Connector Type | Phone Plug |
| Cable Opening | - |
| Body Material | - |
| Body Color | Gold, Black |
| Actual Diameter | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Amphenol Tuchel Electronics series electronic components. We have 14423 pcs of Amphenol Tuchel ElectronicsTM1PB-AU in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
